  Acorn ANC04 Z80 2nd processor

[Index by function ]     [Index by Company ]

Acorn Z80 2nd processor box

 Acorn Z80 2nd processor box

 Acorn Z80 2nd processor front & top

Acorn Z80 2nd processor (front and top)

Acorn Z80 2nd processor right side

 Acorn Z80 2nd processor (right)

 Acorn Z80 2nd processor back

 Acorn Z80 2nd processor (back)

 Acorn Z80 2nd processor bottom

 Acorn Z80 2nd processor (bottom)

 Acorn Z80 2nd processor open

Acorn Z80 2nd processor with top cover removed

Acorn Z80 2nd processor circuit board top

 Acorn Z80 2nd processor circuit board (top)

 Acorn Z80 2nd processor circuit board bottom

 Acorn Z80 2nd processor circuit boad (bottom)

Back in the early '80s I had a Torch Z80 disc pack with my BBC B so I didn't bother with the Acorn Z80 2nd processor, this example was bought off ebay in November 2001. The Z80 2nd processor has a 6MHz Z80 processor with 64KB memory, it ran CP/M 2.2.

The Z80 2nd processor came with a generaous range of software including:

 Acorn Z80 2nd processor brochureHere is the Acorn brochure describing the Z80 2nd processor.

The pictures show:

  1. The Acorn Z80 2nd processor box, it is far from mint, but in quite good condition for its age.

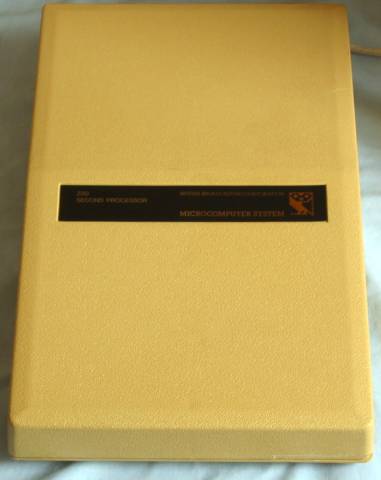

  2. The Z80 2nd processor front and top, showing quite heavy discolouration, i think from sunlight rather than nicotene.

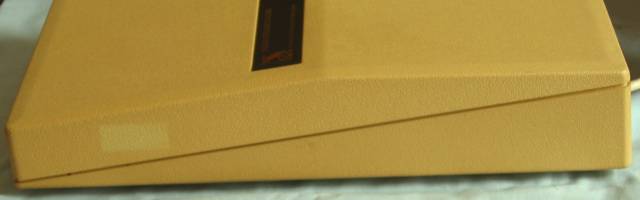

  3. The right side the the Z80 2nd processor (the left is the same.

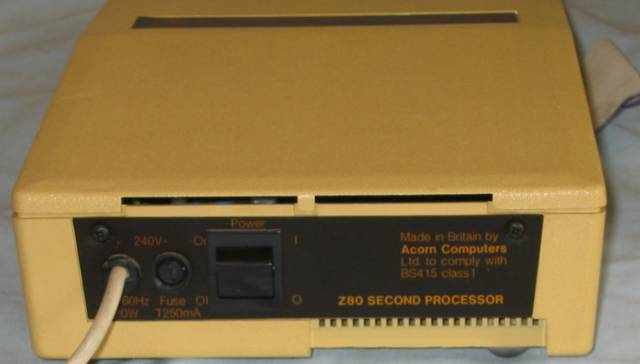

  4. The back of the Z80 second processor showing the power in, fuse and on/off switch

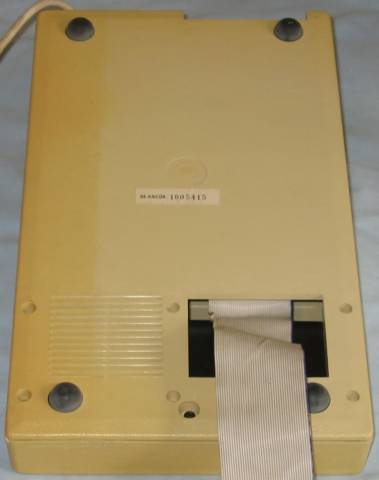

  5. The bottom of theZ80 2nd processor showing the ribbon cable connector to the BBC B's TUBE interface and the serial Number (04-ANC04-105415)

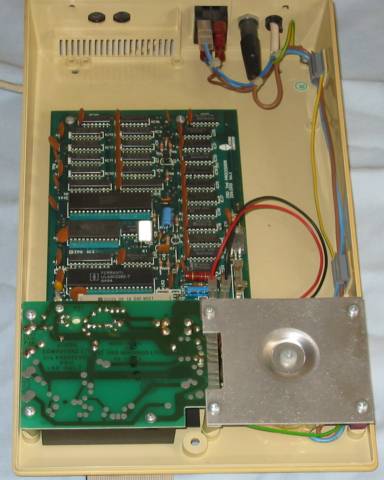

  6. The Z80 2nd processor with the top cover removed, showing the +5v psu in the front and the Z80 circuit board in the middle.

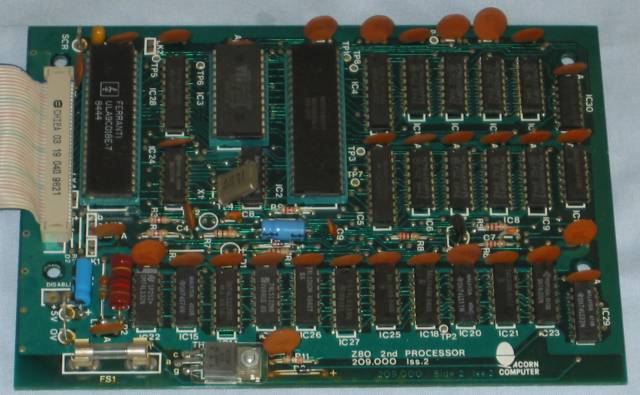

  7. The Z80 circuit board with the Ferranti TUBE ULA next to the ribbon cable, the Z80 CPU is in the middle of the board.

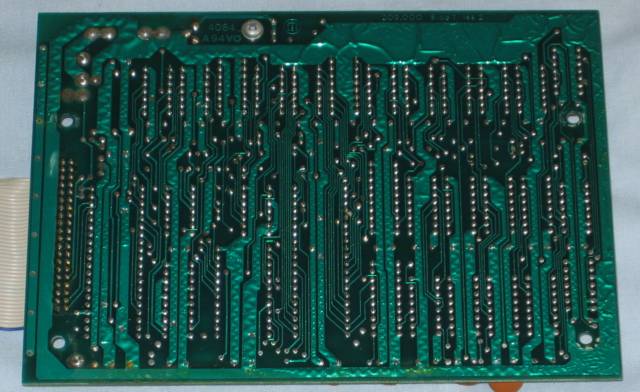

  8. The bottom of the Z80 circuit board.

A HiRes version of the Z80 2nd processor circuit board is available HERE .

The Z80 second processor User Guide is available HERE.
Here are the Z80 second processor Function Key Cards.
The Z80 second processor Service Manual is available HERE .

In June 1984 Acorn User published a review titled 'Z80 Business Bundle '.
In April 1985 Acorn User published a comparative review titled "Can the ZEP100 zap the Acorn Z80"
