Acorn ANE01 Teletext Adapter

[Index by function ]     [Index by Company ]

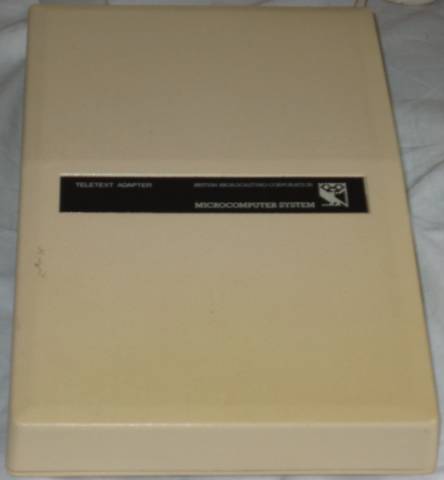

Acorn ANE01 Teletext Adapter (front)

The Acorn Teletext Adapter is housed in a classic Acorn "cheese wedge" box.

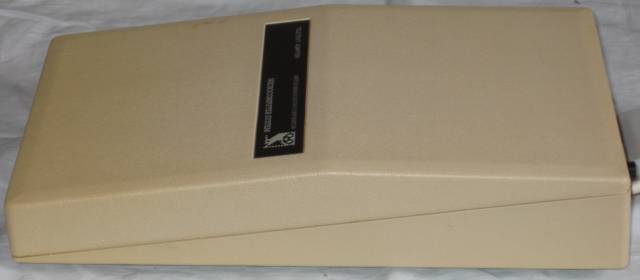

Acorn ANE01 Teletext Adapter (right)

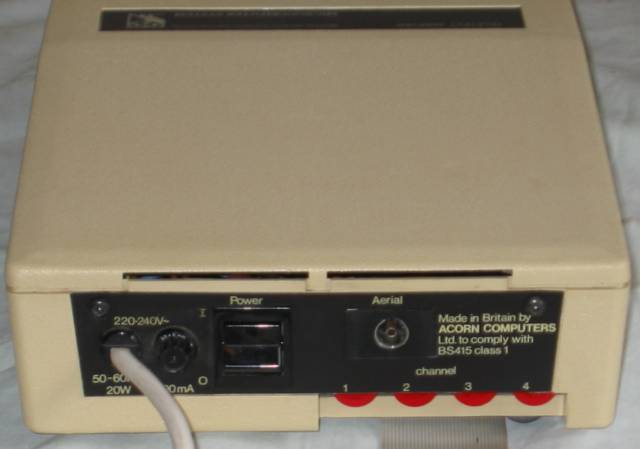

Acorn ANE01 Teletext Adapter (back)

The back of the Teletext Adapter shows the socket for the TV aerial and the red tuning wheels for four channels.

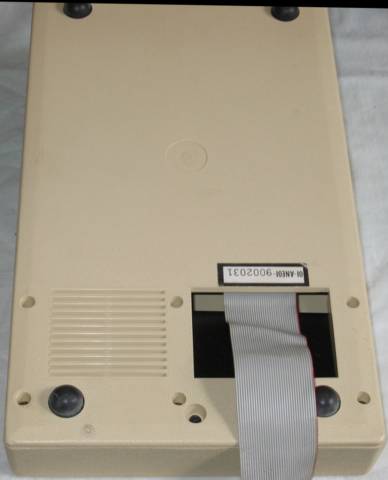

Acorn ANE01 Teletext Adapter (bottom)

The serial number is 01-ANE01-9002031. The ribbon cable connects to the BBC Micros 1MHz Bus.

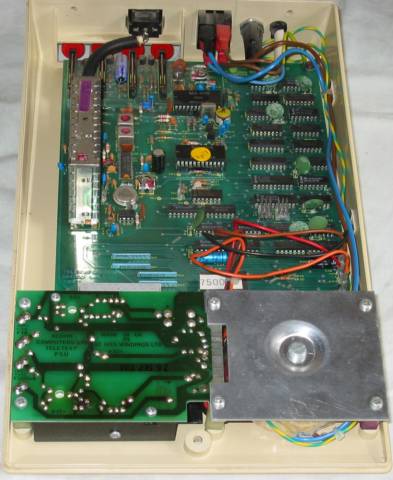

Acorn ANE01 Teletext Adapter with top cover removed

With the Teletext Adapter opened, you can see:

• the power supply at the front,
• The grey item on the left partly hidden by the power supply is the connector for the 1MHz bus
• the TV tuner on the middle left,
• the red tuning wheels at the back
• The two decoder chips SAA 5020 and SAA5030

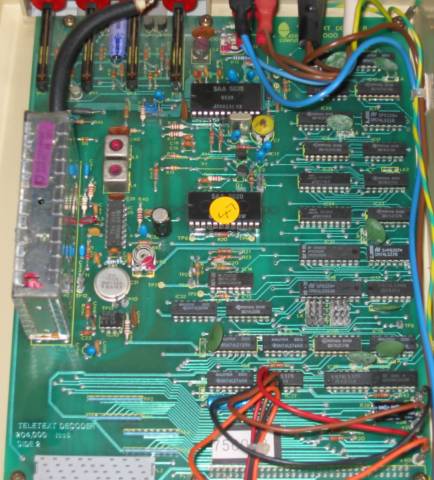

 Acorn ANE01 Teletext Adapter circuit board

Here is a HiRes picture of the Acorn ANE01 Teletext Adapter circuit board .

Manuals and documents

Here is the Acorn brochure for the ANE01 Teletext Adapter:

Here is the Acorn Teletext Adapter User Guide .

In 1986 BBCSoft produced the Advanced Teletext System which replaced the Acorn ROM, here is the Advanced Teletext System User Guide .

Description

The Acorn Teletext Adapter receives its signal from a TV aerial and connects to the BBC Micro via the 1MHz Bus. The BBC Micro must have a Teletext ROM installed. Teletext is a system used to broadcast text using spare lines in a TV signal (see Wikipedia for a history of Teletext).

When the BBC Micro was launched, the BBC also used Teletext to broadcast software for people to download. When the UK digital switchover results in the Analogue TV service being turned off, it will no longer be a broadcast Teletext service in the UK and the Teletext Adapter will cease to be useful.

A more detailed description of Acorn Teletext Adapter can be found at heyrick.co.uk
