Acorn Type 2 Econet Clock

[Index by function ]     [Index by Company ]

Acorn Type 2 Econet Clock top

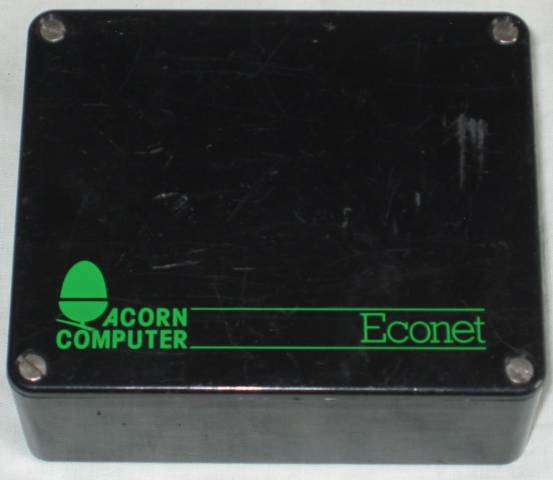

 Acorn Type 2 Econet Clock (top)

Acorn Type 2 Econet Clock right

 Acorn Type 2 Econet Clock (right)

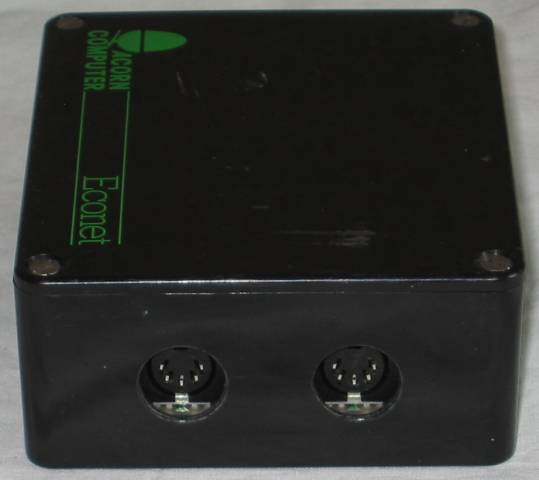

This picture shows the 2 Econet sockets for connection to the network, typically the clock is in the middle of the network with half connected to one socket and half to the other.

Acorn Type 2 Econet Clock left

Acorn Type 2 Econet Clock (left)

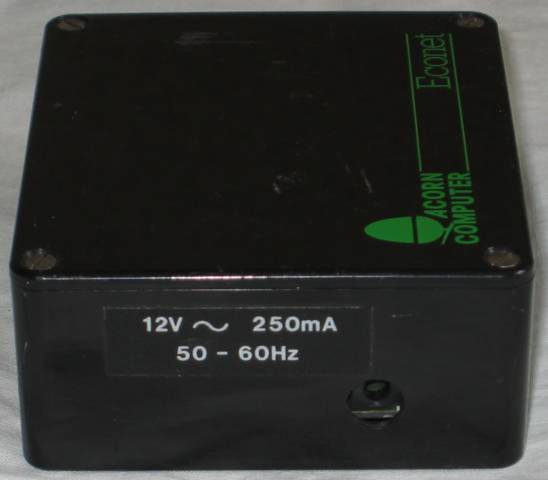

 This picture shows the power input for the clock.

Acorn Type 2 Econet Clock open

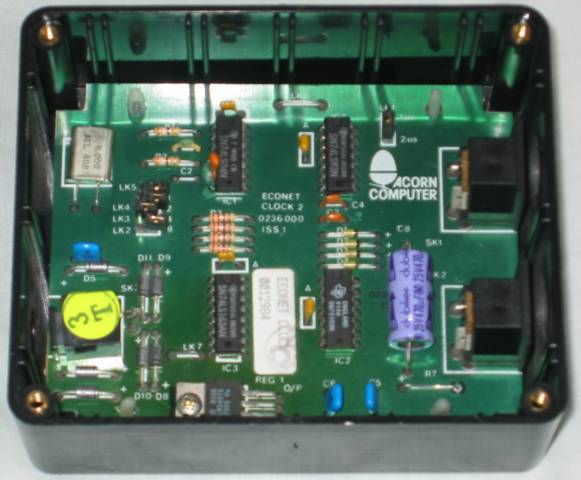

Acorn Type 2 Econet Clock with top removed

 Acorn Type 2 Econet Clock circuit board

 Acorn Type 2 Econet Clock circuit board

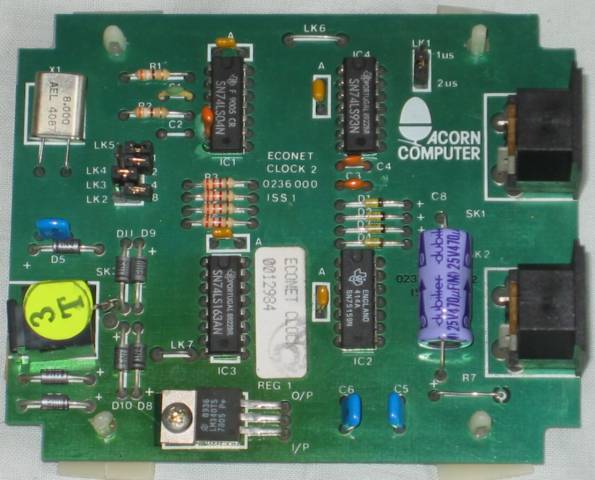

This picture shows the Econet Clock circuit board, LK1 and LK2-5 are used to set the mark and space times which set the clock speed.
