Acorn Final Inspection and Test System

[Index by function ]     [Index by Company ]

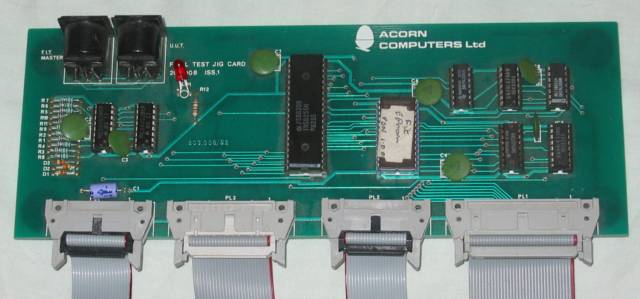

Acorn FIT top

 Acorn Final Inspection and Test System (top)

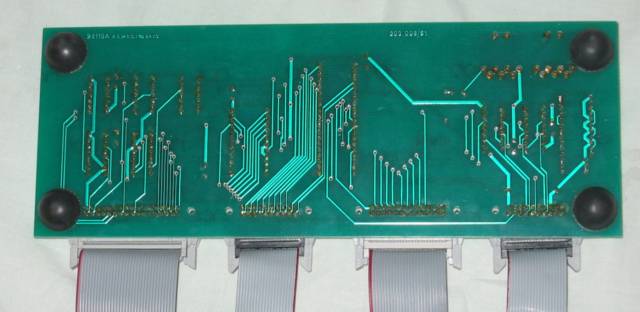

Acorn FIT bottom

 Acorn Final Inspection and Test System (bottom)

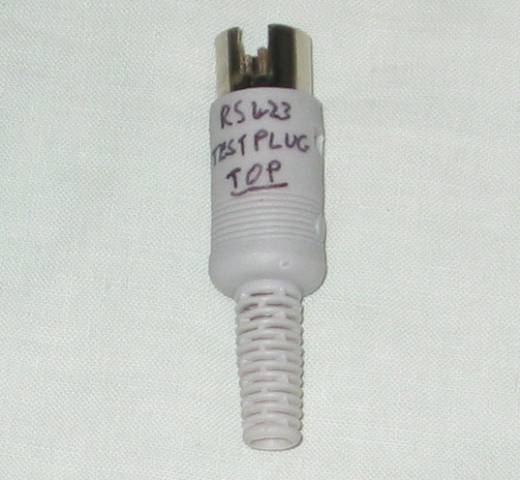

Acorn FIT RS423 test plug

 Acorn F.I.T. RS423 test plug

The Acorn Final Inspection and Test System (FIT) is designed to test the BBC machine after it has been fully assembled and just before it is packed and dispatched, whether by a manufacturer or a dealer who has serviced it. As such it requires no connection to the computer other than those readily available. In the case of model As this is simply the cassette and video/monitor ports, whereas the B types require a small circuit board with links to the 1MHz bus, printer, User I/O and analogue ports and a plug with links for the RS423 output as well.

The FIT tests are:

  1. 1MHz bus,
  2. Printer lines,
  3. User I/O output,
  4. User I/O input,
  5. A/D channels
  6. RS423
  7. BASIC ROM CRC
  8. OS ROM CRC
  9. Speech ROM CRC (if fitted)
  10. Sound
  11. Screen tests
  12. Keyboard

Here are the Acorn Operating Instructions for th Final Inspection and Test System for the BBC Microcomputer .
