Acorn FileStore E40S

Acorn Filestore E40S front

Acorn FileStore E40S (front)

Acorn FileStore E40S (bottom)

Acorn FileStore E40S (back)

Acorn Filestore E40S open

Acorn FileStore E40S with top cover removed

The Acorn FileStore E40S is a hard disc expansion unit for the FileStore E01S.

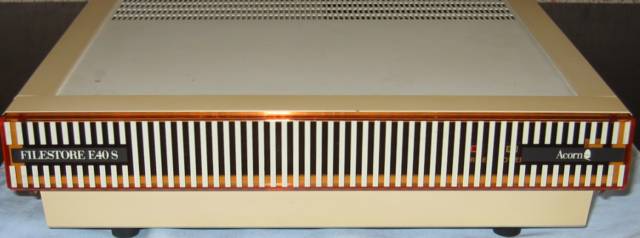

Picture 1 shows the from of the E40S with the flap up. Behind the flap are the power and drive activity lights.

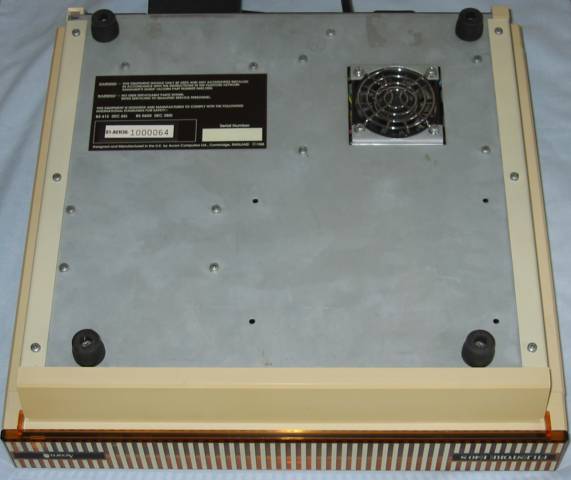

Picture 2 shows the underneath of the E40S with cooling fan and serial number.

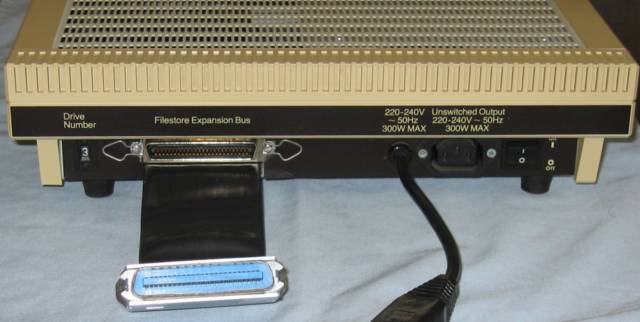

Picture 3 shows the back of the E40S with, from left to right, the drive number selector, the FileStore expansion bus ribbon cable to the E01S and socket to connect to another FileStore hard disc unit, the power cable and socket for connection to the next Filestore hard disc unit and the on off switch.

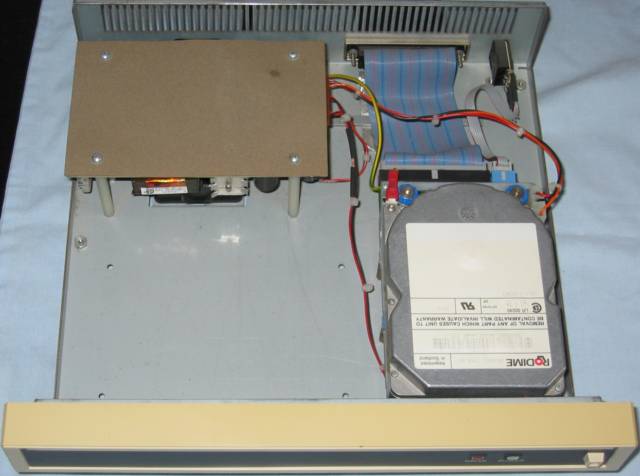

Picture 4 shows the inside of the FileStore E40S. Not a lot there really! Once Rodime RO3057S 43MB hard disc connected to the FileStore Expansion bBus by ribbon cable and a power supply. I hasn't even got provision for a second hard disc.
