GIS Advanced Teletext Receiver

[Index by function ]     [Index by Company ]

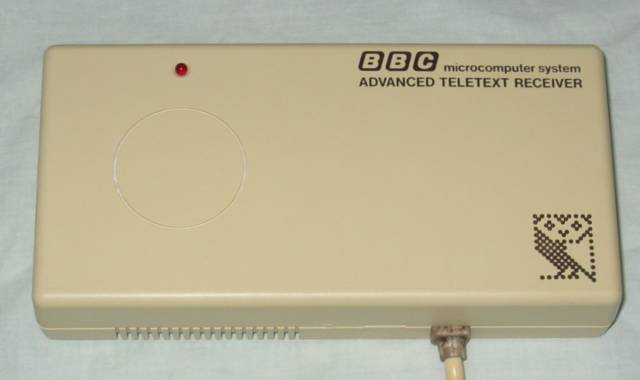

GIS Advanced Teletext Receiver top

 GIS Advanced Teletext Receiver (top)

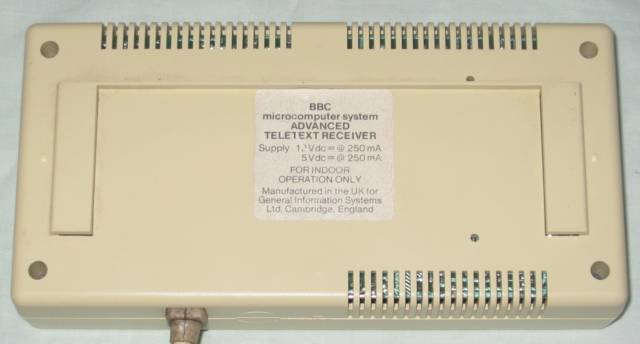

GIS Advanced Teletext Receiver bottom

  GIS Advanced Teletext Receiver (bottom)

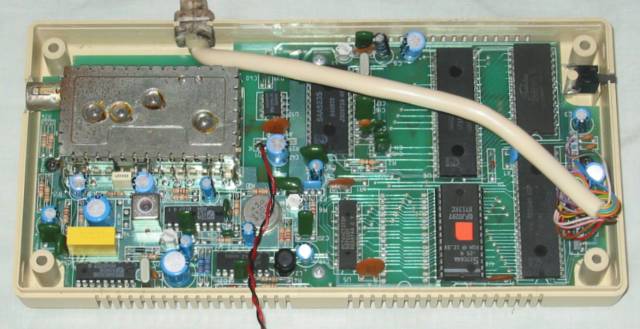

GIS Advanced Teletext Receiver open

  GIS Advanced Teletext Receiver open

GIS Advanced Teletext Receiver plugs

  GIS Advanced Teletext Receiver plugs

TheAdvanced Teletext Receiver was made by GIS (General Information Systems Ltd) with co-operation from the BBC. It has a socket on the right hand side for the TV ariel, plugs into the BBC Micro's user port and takes its power from the BBC Micro's auxillary power socket. Internally it has a Philips MAB 8031 8 bit processor with 8K EPROM and 8K RAM. It uses the Philips SAA5235 and SAA5250 to process the Teletext signal.

The Advanced Teletext Receiver was launched in 1988, it supports Ceefax and Oracle and works with the BBC model B & B+ and the Master. It comes with the BBC's Advanced Teletext System plus software ROM.

In May 1988 Acorn User published a review "A Closer Look" and included a special offer  for it.

I have no documentation or software for the GIS Advanced Teletext Receiver.
