RetroClinic External Dual Removable CF Hard Drive

[Index by function ] [Index by Company ]

RetroClinic External CF Drive box

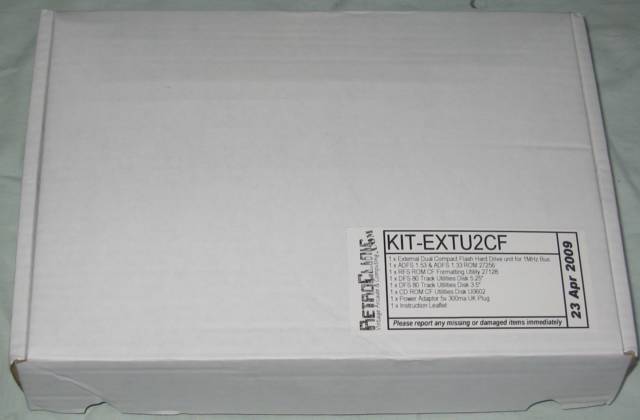

RetroClinic External Dual Removable CF Hard Drive Kit box

RetroClinic External CF Drive kit contents

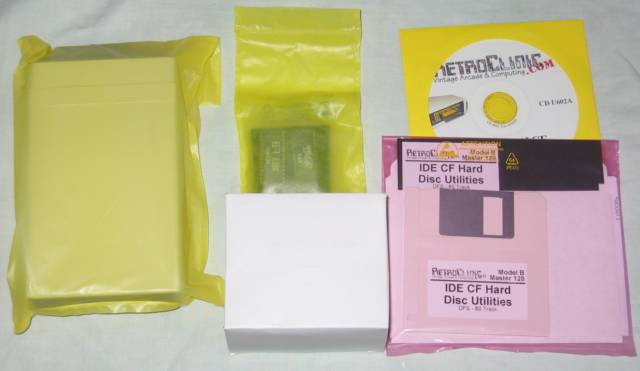

RetroClinic External Dual Removable CF Hard Drive Kit contents

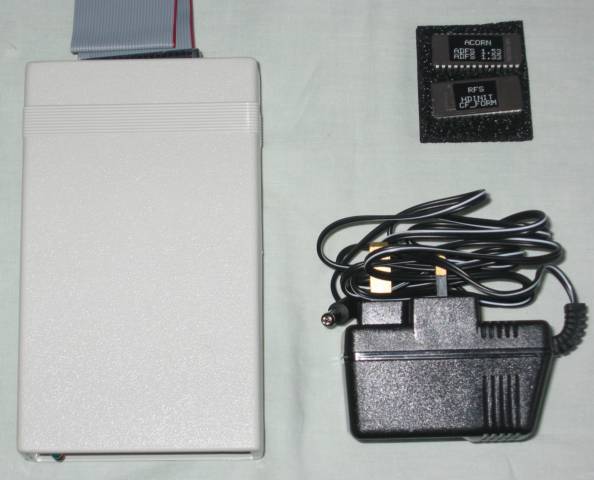

From the left, the Kit contains:

boxed Dual CF drive
Power supply with ROMs above
IDE CF Utilities Disc (5¼" and 3.5"), installation instructions in the same bag and a PC format CD of useful software.

RetroClinic External Dual Removable CF Hard Drive Kit unpacked

This picture shows the CF drive and ribbon cable which connects the the 1MHz bus, the power supply and the ROMs

RetroClinic External CF drive installed in Master

RetroClinic External Dual Removeable CF Hard Drive installed in a Master

The CF drive has a 16Mbyte CF card in it and is attached to the Masters 1 MHz bus. On the right the RFS HDINIT CF_FORM ROM is installed in a Care Electronics Master ROM cartridge. I keep it in a cartridge because it is only needed when a new CF card is formatted. On the screen you can see the contents of the CF drive (copied from the 5¼" floppy disc and the output from *FREE showing 7+ MB free space. Because the interface is 8 bits wide it can only use half the capacity of the CF card. The CF drive can take 2 CF cards as drives 0/1 and 2/3.

I am planning to use the CF drive with a 1GB CF card to back up all my BBC era floppy discs.

Futher details can be found on the RetroClinic web site under BBC Model B, B+ and Master 128 - External Dual Removeable Compact Flash Hard Drive Kit
