BBC Microcomputer Model A Issue 3

[BBC Micro]      [Computers ]

Introduction

The BBC Model A was the cheaper of the 2 models. It only had 16K memory and lacked most of the ports. It could be upgraded to the Model B specification and many Model As were wholely or partially upgraded to Model Bs. This is an early Model A with an Issue 3 motherboard, the date codes on some of the ICs are from 1981 or 1982 and it still has BASIC 1 installed. It has been upgraded to Model B specification. The MOS is 1.20 with a 1984 date code, so I suspect it was upgraded at a later date.

Manuals and documents

See BBC Micro .

BBC Model A Issue 3

This BBC Micro started life as a Model A but has been upgrade to a Model B. It also has a Computr Village 1797 Disc controller  and LVL double density DFS. I bought this computer on ebay in 2005.

BBC Model A Issue 3

BBC Model A Issue 3

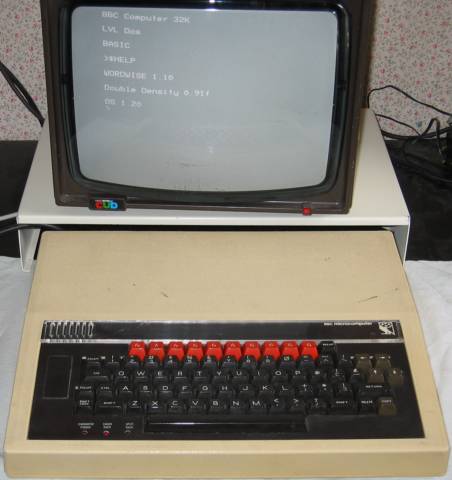

The screen shows that this BBC Micro has been upgraded to 32K RAM and has a LVL Dos DFS and Wordwise 1.10 installed. The OS verwsion is 1.20 and BASIC 1 is installed (not in picture)

BBC Model A Issue 3 back

 BBC Model A Issue 3 (back)

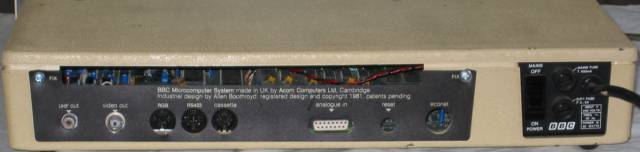

The back of the BBC Model A Issue 3 shows that it has been upgraded with RGB, RS423 and Analogue in ports. Note the wide ventilation slot at the top with access to the motherboard for little fingers.

BBC model A Issue 3 bottom

BBC Model A Issue 3 (bottom)

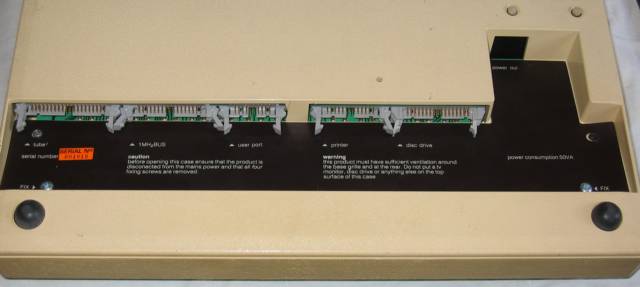

The bottom of the BBC Model A Issue 3 shows the serial number on the left (001013), it does not give the manufacturer unlike most labels at this time. The ports are all present, which indicates it has been upgraded to Model B Specification, the ports are Tube, 1MHz Bus, user port, printer and disc drive. There is no auxillary pouwer outlet on the right,

BBC Model A issue 3 with top and keyboard removed

BBC Model A Issue 3 with top and keyboard removed

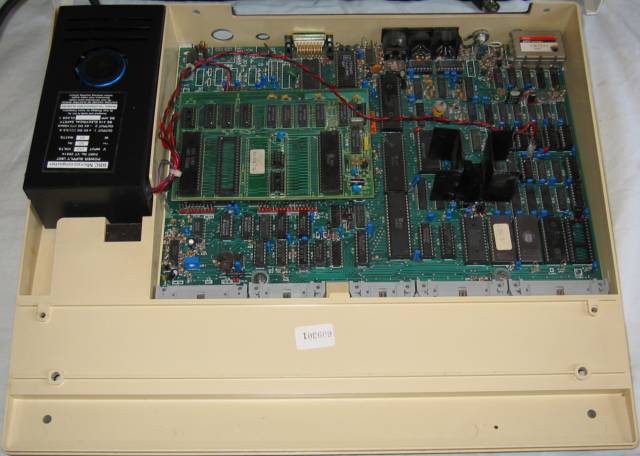

This shows the early, black power supply on the left, which I have only seen this on the Model A. In the middle is the Computer Village floppy disc controller. To the right is the ULA heat sink which is typical of the Issue 3.

BBC Model A Issue 3 with fdc removed

 BBC Model A Issue 3 with floppy disc controller removed

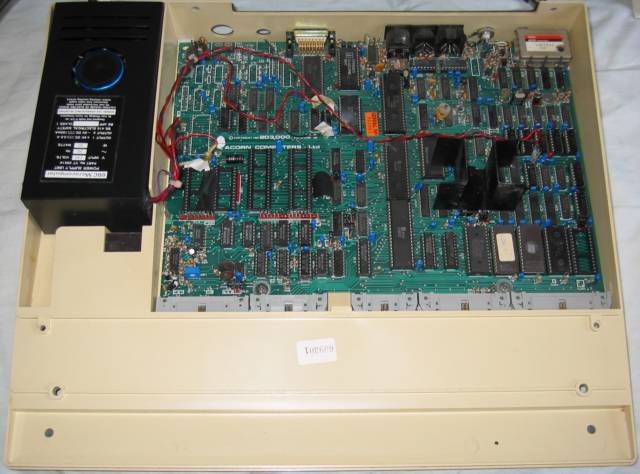

The Computer Village board plugged into the two large sockets for the Intel 8271 and the 6522.

BBC Model A Issue 3 motherboard

 BBC Model A Issue 3 motherboard (top)

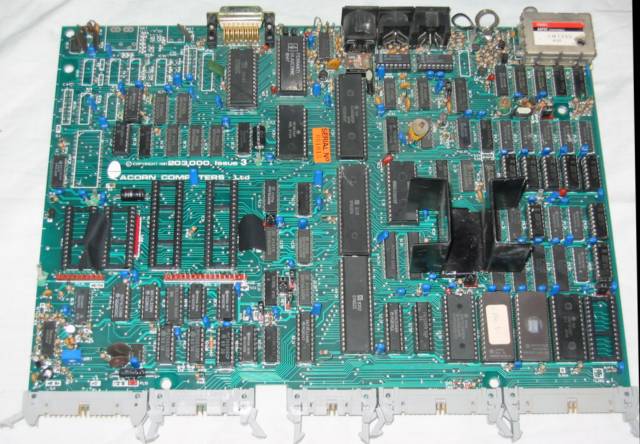

With the Computer Village floppy disc controller removed, you can see the empty area in the top left where the Econt interface is fitted. Below that there are 2 small sockets for the speech system and two large sockets to their right for the Intel 8271 FDC and a 6522 which the Computer Village floppy disc controller plugs into, the 6522 is plugged into the Computer Village board. On the middle right 8 of the RAM chips are socketed, another indication that this is an upgraded Model A.

Here is a HiRes picture of the BBC Model A Issue 3 motherboard .

BBC Model A issue 3 motherboard (bottom)

  BBC Model A Issue 3 motherboard (bottom)

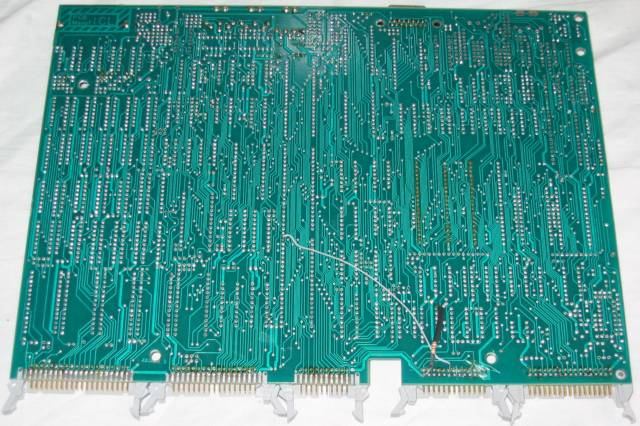

Apart from the 2 wire modifications, if you look carefully, you can see that the ports along the bottom edge have been manually soldered in as part of the upgrade from Model A to Model B.

BBC Model A Issue 3 Keyboard top

BBC Model A Issue 3 Keyboard (top)

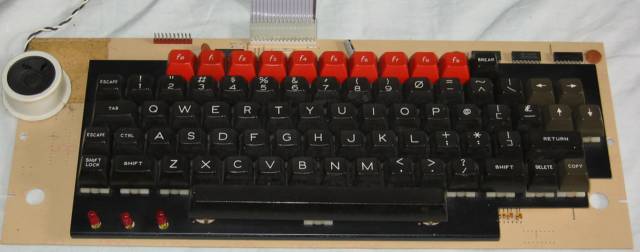

The loadspeaker is set in a little white plastic mount.

BBC Model A Issue 3 Keyboard bottom

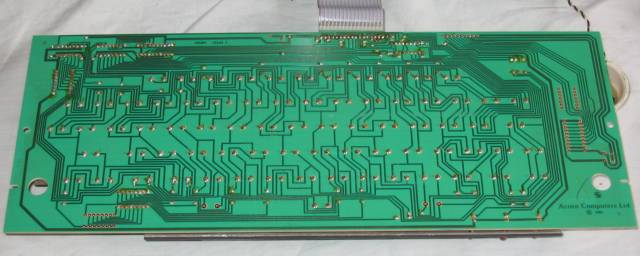

BBC Model A Issue 3 Keyboard (bottom)

Specification:

Serial No.001013
Motherboard203,000 Issue 3
CPUSynertek
SY6502A
CPU Clock2MHz
RAM32KB
ROM16KB + 48KB sideways ROM
Disc ControllerComputer Village 1797 FDC
Disc Filing SystemLVL Dos double Density 0.91f
OS1.20
BASIC1
Add-in/UpgradesComputer Village FDC
LVL Dos
Wordwise 1.10
