Atomwide Ethernet

[Back ]

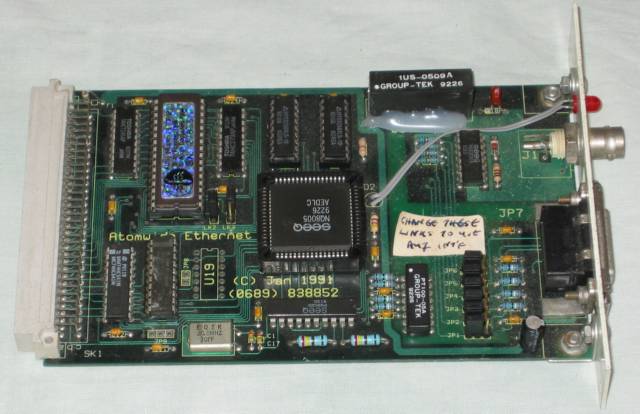

Atomwide Ethernet (top)

Athomwide Ethernet (top)

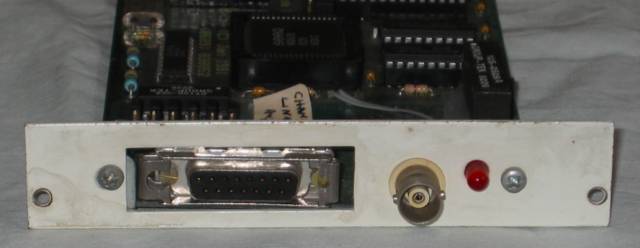

Atomwide Ethernet (back)

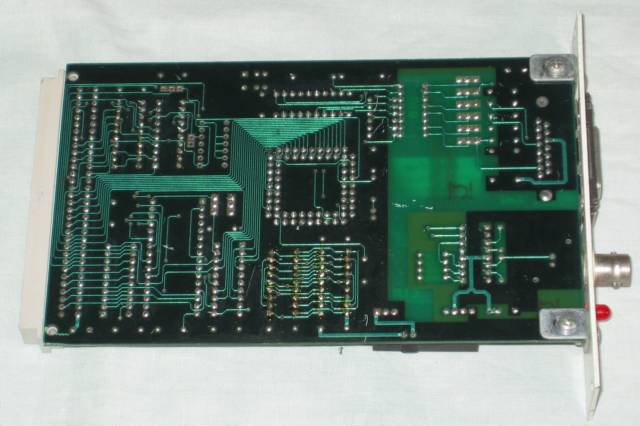

Atomwide Ethernet (bottom)

Atomwide Ethernet (bottom)

This is Atomwide's first Ethernet podule for the Archimedes, made in 1991. It uses the SEEQ NQ8005 chip and has a ANT AUN, Access and TCP/IP ROM which is clearly a replacement for the original ROM as it is dated 1994. The podule supports 10base5 via a 15 pin AUI (Attachment Unit Interface) connector and 10base2 via BNC connector.
