R260

[Previous] [Back] [Next]

R260B/JPG

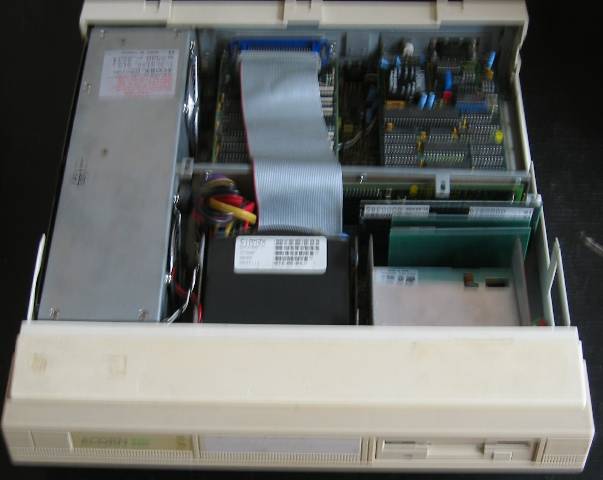

R260 opened up to show the AKA25 Ethernet card on the right, the AKA31 SCSI podule which is covered by the ribbon cable and the large power supply on the left which has 2 fans. The Connor CP3100 hard disc is in the front middle. On the right hand side behind the floppy drive are the 3 memory cards and the CPU.
