ANT Ethernet 10base2 mini-podule

[Index by function ]     [Index by Company ]

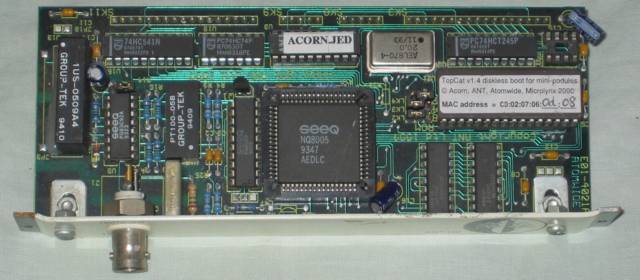

ANT Ethernet 10base2 mini-podule top

ANT Ethernet 10base2 mini-podule (top)

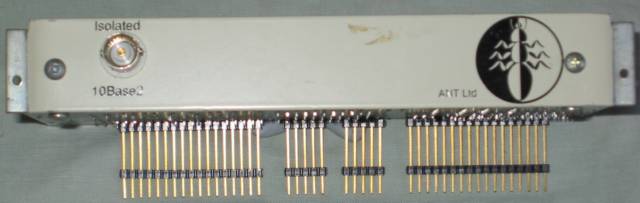

ANT Ethernet 10base2 mini-podule back

ANT Ethernet 10base2 mini-podule (back)

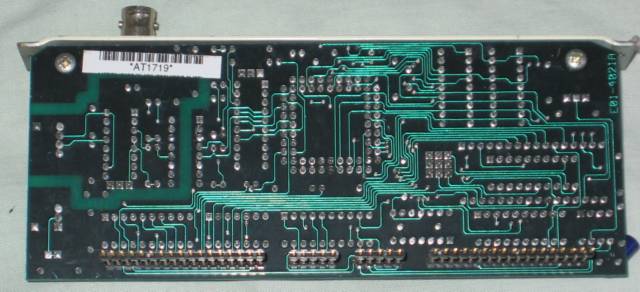

ANT Ethernet 10base2 mini-podule bottom

 ANT Ethernet 10base2 mini-podule (bottom)

This is an ANT Ethernet 10base2 mini-podule for the A30x0 and A4000. It has a 10base2 BNC connnetor and is designed around a SEEQ NQ8005 16 bit ethernet data link controller.

This ANT Ethernet 10base2 mini-podule has a TopCat 1.4 discless boot ROM. Microlynx TopCat runs on a Windows NT or 2000 server and allows client RISC OS computers to log on to the Windows server and receive access to both shared, read-only and user directories on the NT server. The RISC OS computer can then run RISC OS and Windows applications loaded from the Windows server. For further details see the Microlynx  website.
