Acorn A500 Backplane

[Index by function ]     [Index by Company ]

This backplane is from the Acorn A500, the Archimedes prototype. It is part no SKEA,007 Issue A.

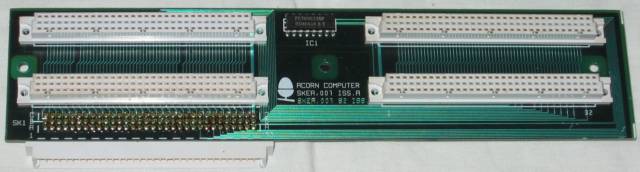

Acorn A500 Backplane front

 Acorn A500 Backplane (front)

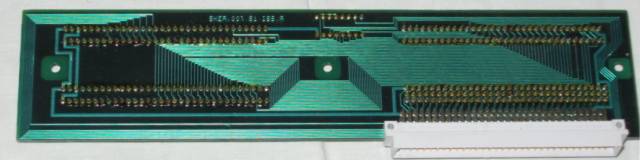

Acorn A500 Backplane back

 Acorn A500 Backplane (back)
