Acorn AEH50 Ethernet II

[Index by function ]     [Index by Company ]

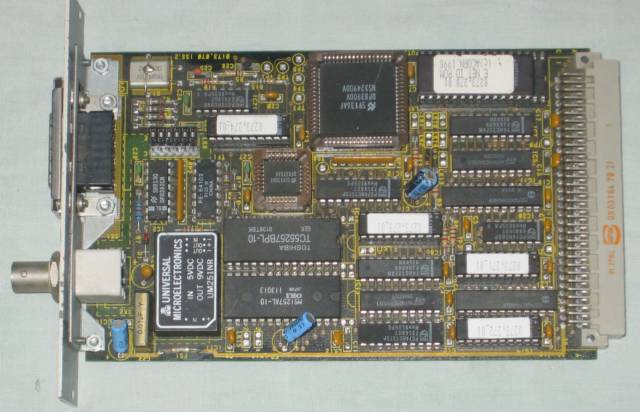

Acorn AEH50 Ethernet II top

Acorn AEH50 Ethernet II (top)

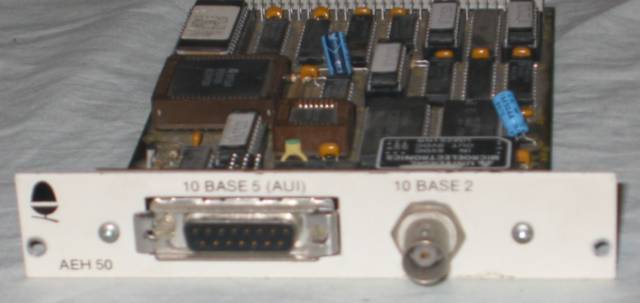

Acorn AEH50 Ethernet II back

Acorn AEH50 Ethernet II (back)

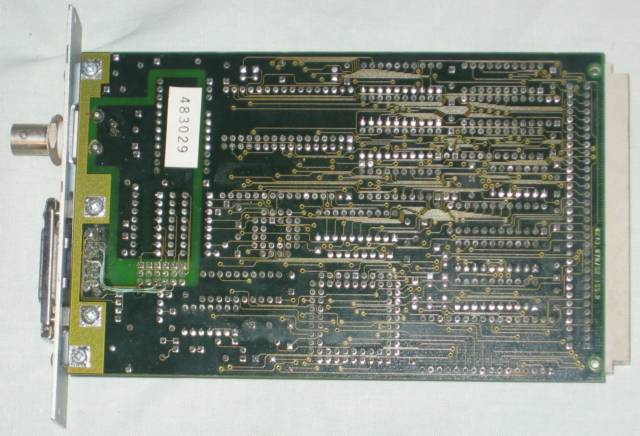

Acorn AEH50 Ethernet II bottom

 Acorn AEH50 Ethernet II (bottom)

The Acorn AEH50 Ethernet II podule has 10base2 (BNC) and 10Base5 (AUI) Interfaces. The podule has 2 x 32K static RAM and a NatSemi DV8390DV Network Interface Controller. This card came from an Acorn R260.
