Acorn AKA20 We32206 Floating Point Co-Processor

[Index by function ]     [Index by Company ]

Acorn WE32206 FP CoPro top

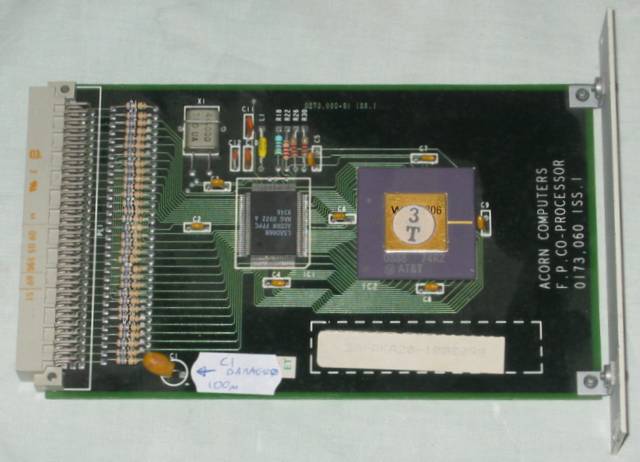

Acorn WE32206 Floating Point Co-Processor (top)

Note: This card is faulty, as the label at the bottom right states, C1 is damaged one of the wires is broken.

Acorn WE32206 FP CoPro back

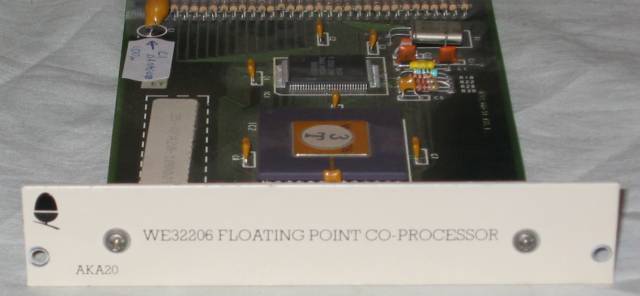

 Acorn WE32206 Floating Point Co-Processor (back)

Acorn WE32206 FP CoPro bottom

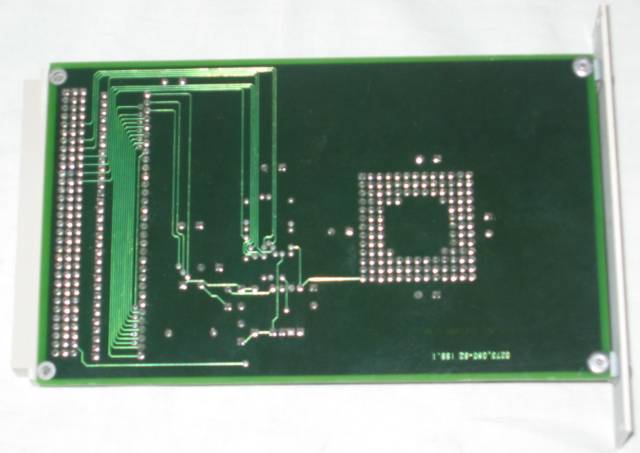

 Acorn WE32206 Floating Point Co-Processor (bottom)

Acorn introduced the WE32206 Floating Point Co-Processor with the R140 Unix workstation. The WE32206 interfaces with the ARM CPU co-processor bus and could process single, double and extended precision floating point operations. It also handled sin, cos and tangent. The WE32206 is clocked at 24MHz. The serial number is 25-AKA20-1000099.

Acorn introduced the WE32206 Floating Point Co-Processor at the same time as the R140 Unix Workstation.
