Atomwide 8Meg RAM Upgrade

[Index by function ]     [Index by Company ]

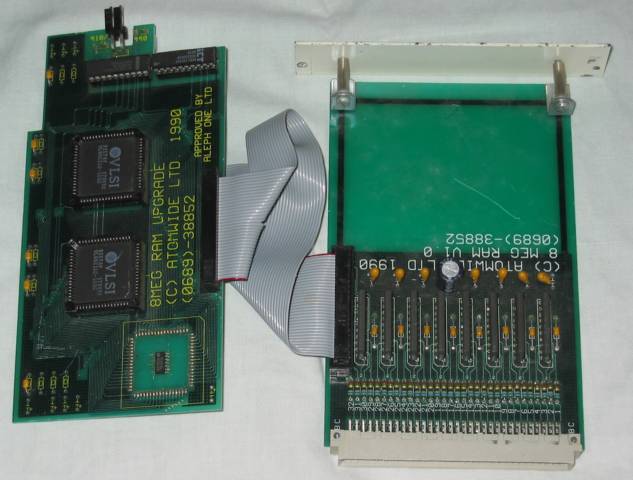

Atomwide 8Meg RAM Upgrade

 Atomwide 8Meg RAM Upgrade

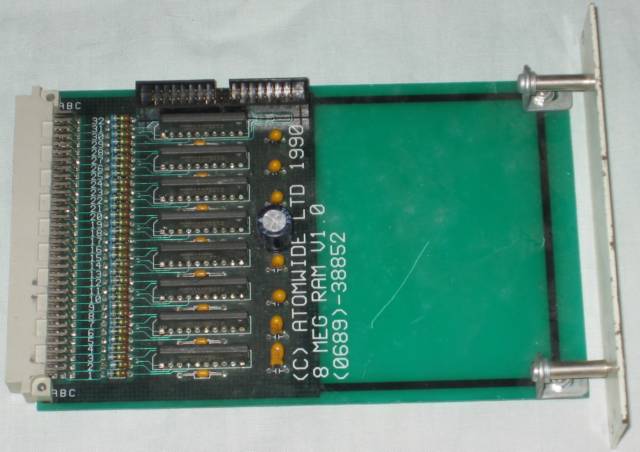

Atomwide *Meg RAM Upgrade RAM board top

  Atomwide 8Meg RAM Upgrade RAM board (top)

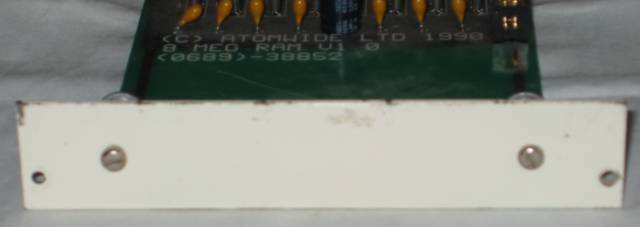

 Atomwide 8Meg RAM Upgrade RAM board back

 Atomwide 8Meg RAM Upgrade RAM Board (back)

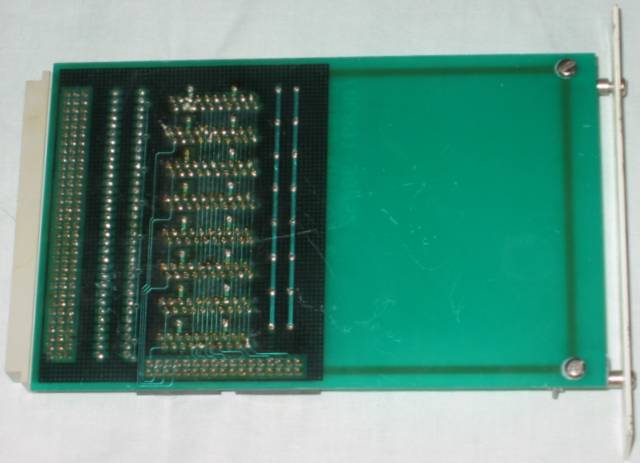

Atomwide 8Meg RAM Upgrade RAM board bottom

  Atomwide 8Meg RAM Upgrade RAM Board (bottom)

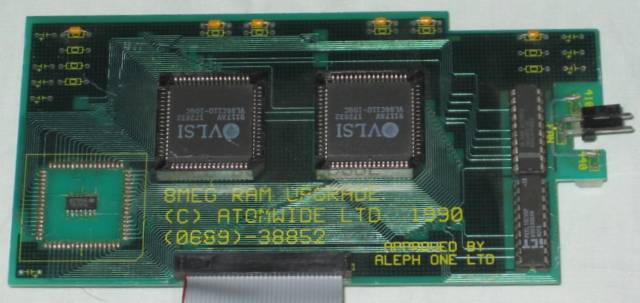

 Atomwide 8Meg RAM Upgrade MEMC board top

  Atomwide 8Meg RAM Upgrade MEMC Board (top)

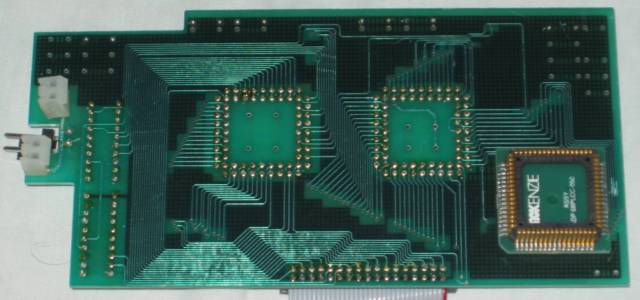

 Atomwide 8Meg RAM Upgrade MEMC board bottom

  Atomwide 8Meg RAM Upgrade MEMC Board (bottom)

The Atomwide 8Meg RAM Upgrade for A440, R140 & A410/1 consists of 2 boards, the first contains 2 MEMC1a ICs and plugs into the MEMC socket on the motherboard, the second contains the RAM and occupied a podule slot. The RAM board contains 8 x HM514400Z (1M x 4bits) giving 4 MB. The remaining 4 MB are on the motherboard.
