Atomwide Ethernet V

[Index by function ]     [Index by Company ]

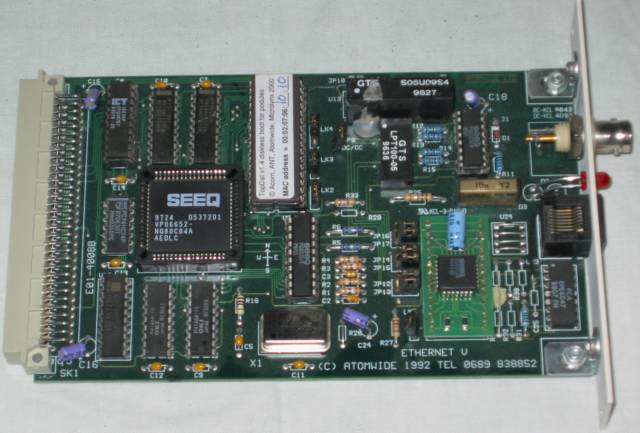

Atomwide Ethernet V top

Atomwide Ethernet V (top)

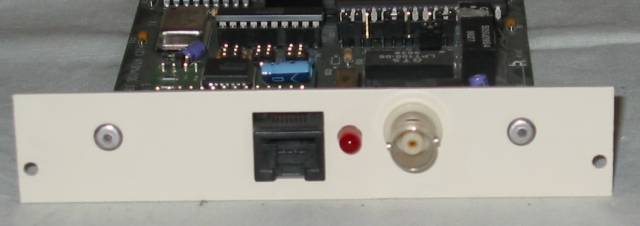

Atomwide Ethernet V back

 Atomwide Ethernet V (back)

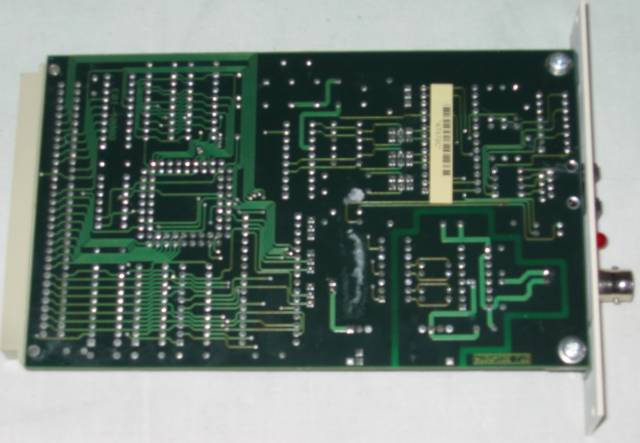

 Atomwide Ethernet V bottom

 Atomwide Ethernet V (bottom)

An Ethernet podule interface with a 10Base2 (BNC) and 10BaseT (RJ45) socket. The main IC is a Seeq VP06652. The ROM is for a TopCat v1.4 diskless boot.
