Atomwide Serial Expansion Card

[Index by function ]      [Index by Company ]

 Atomwide Serial Expansion top

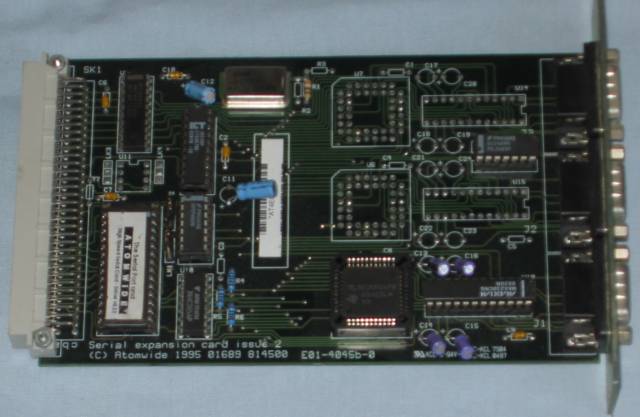

 Atomwide Serial Expansion card Issue 2 1 port (top)

 Atomwide Serial Expansion back

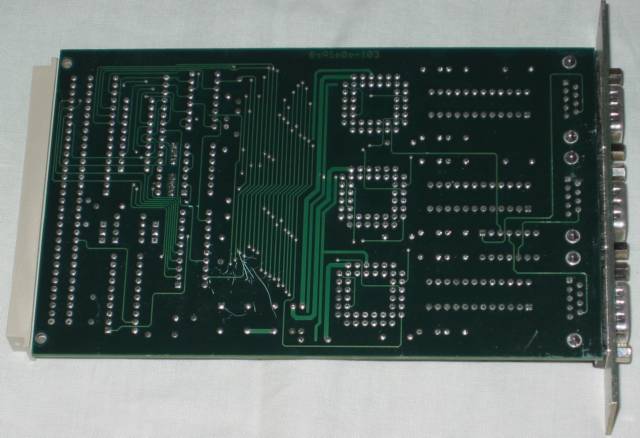

Atomwide Serial Expansion card Issue 2 1 port (back)

 Atomwide Serial Expansion bottom

Atomwide Serial Expansion card Issue 2 1 port (bottom)

 Atomwide Serial Expansion 3port top

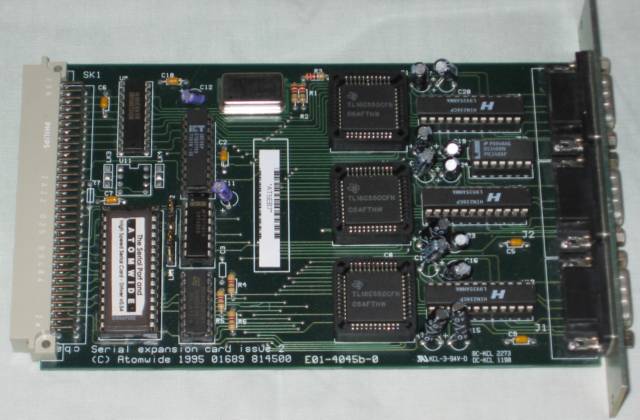

 Atomwide Serial Expansion card Issue 2 3 port (top)

 Atomwide Serial Expansion 3 port back

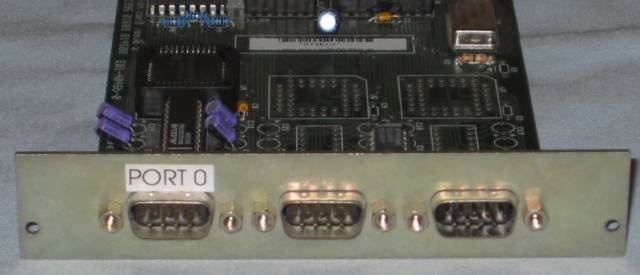

 Atomwide Serial Expansion card Issue 2 3 port (back)

 Atomwide Serial Expansion 3 port bottom

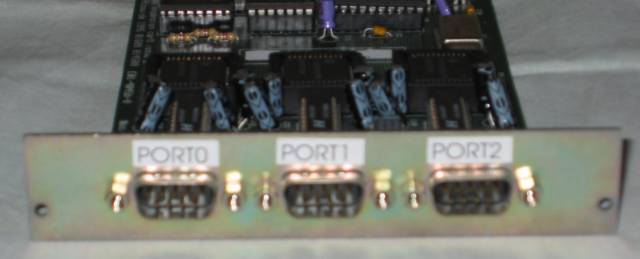

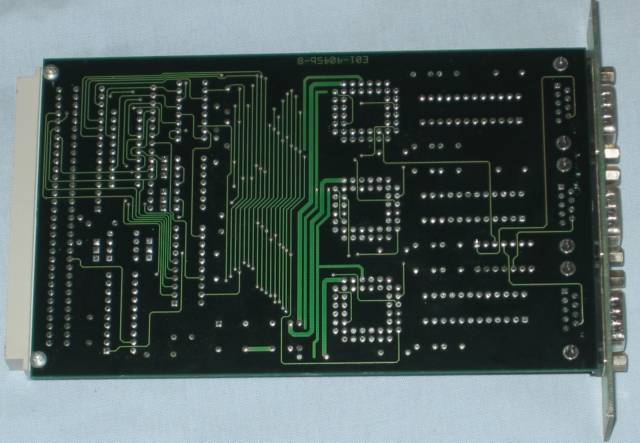

 Atomwide Serial Expansion card Issue 2 3 port (bottom)

The Atomwide Serial Expansion card can have 1, 2 or 3 ports, the first card has 1 port (note the missing components for the other 2 ports), the second card has 3 ports. The card uses a TI 16C550A to drive the serial port.

The Atomwide Multiport Serial support disc is available HERE .
