  Baildon Electronics AnDi Oddule

[Index by function ] [Index by Comapny ]

BE AnDi Oddule top

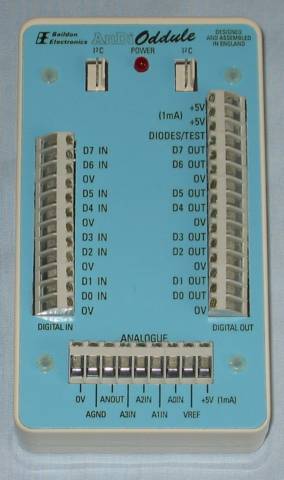

Baildon Electronics AnDi Oddule (top)

 BE AnDi Oddule side

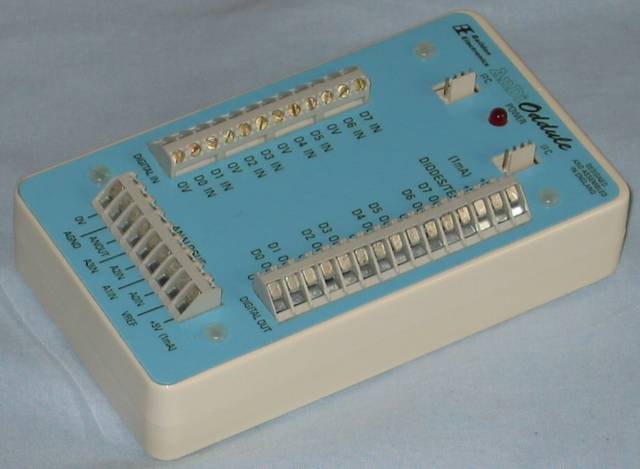

 Baildon Electronics AnDi Oddule (side)

 BE AnDi Oddule inside

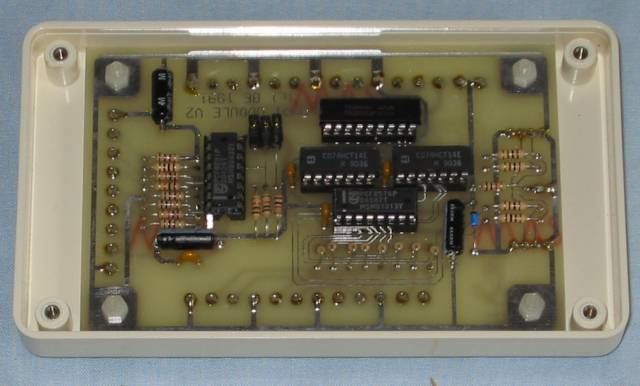

  Baildon Electronics AnDi Oddule (inside)

The AnDi Oddule provides 8bits of digital I/O (which can be individually configured as TTL/CMOS compatible inputs or outputs to drive logic directly), four channels of 8bit A/D, and one channel of 8bit D/A conversion. The Oddule is driven from the I2C bus with update and sample times for both analogue and digital sections with a maximum of 10,000 samples per second.

The I2C Enhanced Module is available HERE .
