  Cumana 8 bit SCSI Interface

[Index by function ] [Index by Company ]

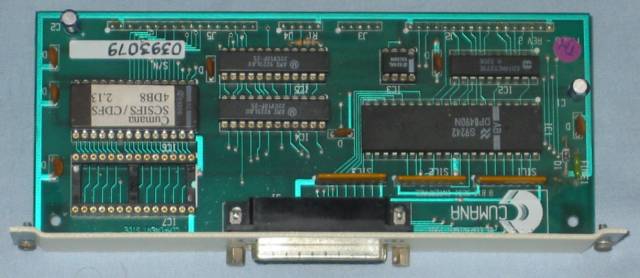

Cuman 8 bit SCSI IF top

 Cumana 8 bit SCSI Interface (top)

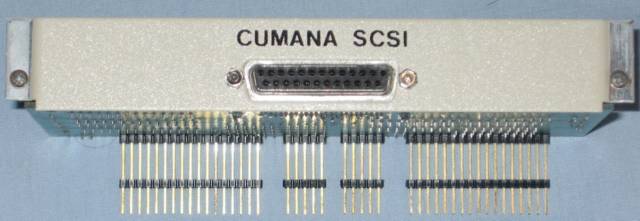

Cumana 8 bit SCSI IF back

 Cumana 8 bit SCSI Interface (back)

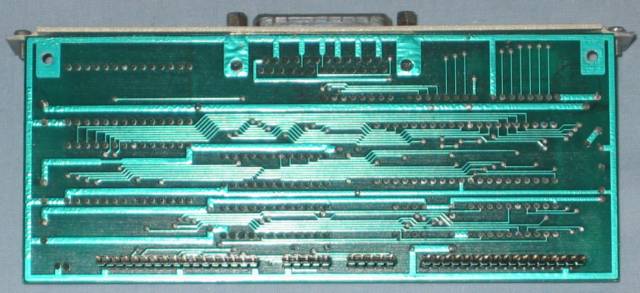

 Cumana 8 bit SCSI IF bottom

 Cumana 8 bit SCSI Interface (bottom)

The Cumana 8 bit SCSI interface is designed for the A30x0 and A4000 range of computers. It has an external 25 pin D connector and no interanl connector.

I have no documentation for this mini-podule.

The Cumana SCSI Manager  software supports this mini podule.

Here is the Cumana CD-ROM Drive & SCSI Interfaces  manual.
