Cumana IDE to Panasonic CDROM Interface board

[Index to function ]      [Index to Company ]

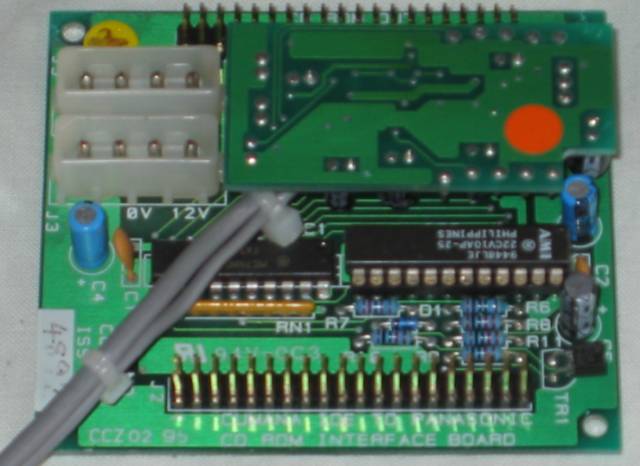

 Cumana IDE to Panasonic CDROM IF front

 Cumana IDE to Panasonic CDROM Interface board (front)

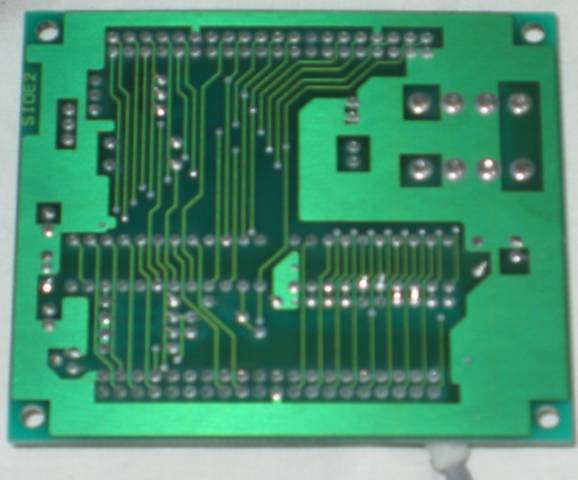

 Cumana IDE to Panasonic CDROM IF back

  Cumana IDE to Panasonic CDROM Interface board (back)

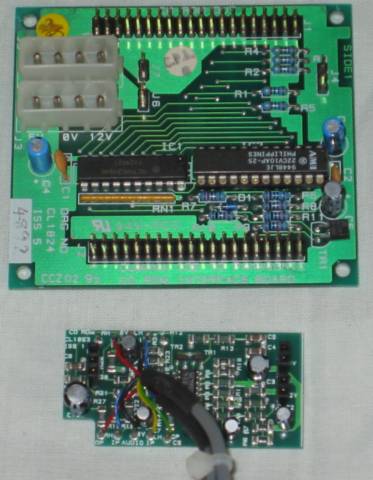

 Cumana IDE to Panasonic CDROM IF

  Cumana IDE to Panasonic CDROM Interface board (seperate boards)

The Cumana IDE to Panasonic CEROM interface allows a CDROM with a Panasonic interface to connect to the RiscPC's on-board IDE interface. It is only required for some early Panasonic (or other) CDROM which pre-date standard IDE or SCSI interfaces. The little daughterboard is for CD Audio connecting, the audio output on the CDROM to the audio in connector on the motherboard.

I am not 100% sure but I think that the Cumana SLCD software is compatible with this interface, it is available HERE.
