Deltronics user Analogue port mini-podule

[Index by function ]     [Index by Company ]

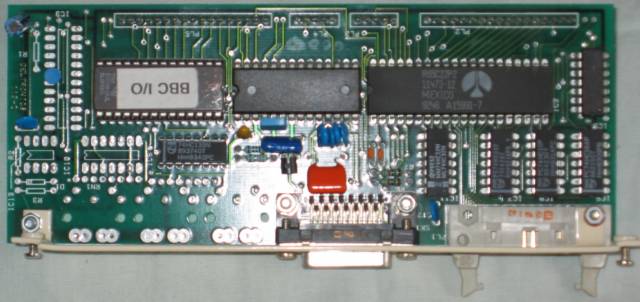

 Deltronics User Analogue port top

Deltronics User Analogue port mini-podule (top)

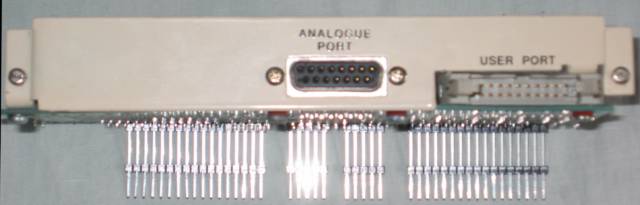

Deltronics User Analogue port back

 Deltronics User Analogue port mini-podule (back)

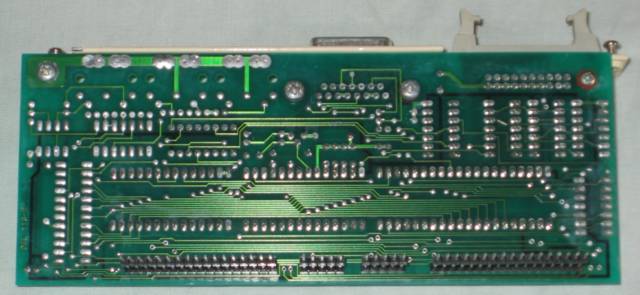

 Deltronics User Analogue port bottom

 Deltronics User Analogue port mini-podule (bottom)

The Deltronics User Analogue port mini podule for the A3000 provides a BBC user port and an Analogue port. The User port is supported by a 65C22. The Analogue port is supported by an NEC D7002C. The card's serial no is 034920
