  IFEL A300 Backplane

[Index by function ] [Index by Company]

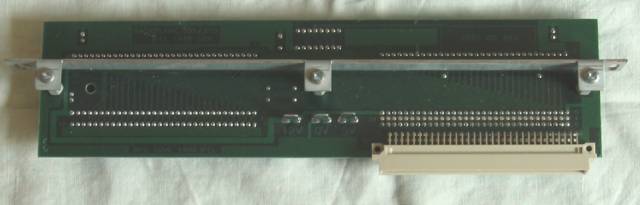

IFEL A300 Backplane back

IFEL A300 Backplane (back)

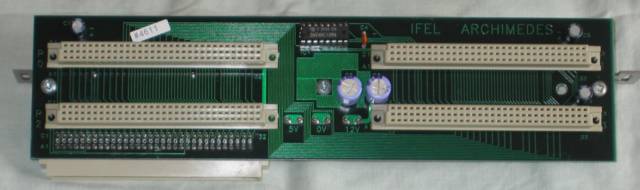

IFEL A300 Backplane front

IFEL A300 Backplane (front)

Because the Archimedes A300 did not have the backplane installed as standard, there was an opportunity for 3rd parties to fill the gap. IFEL was one of them with a 4 slot backplane. The metal bar on the back connected to the case via screws through the holes at each end and held the backplane stable.
