Wild Vision Hawk V9 MkII

[Index by function ]     [Index by Company ]

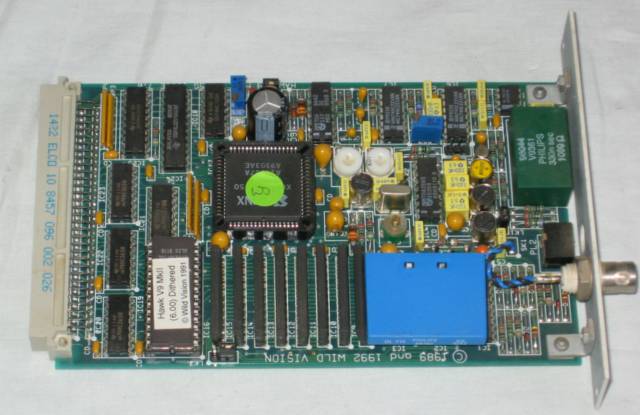

Wild Vision Hawk V9 MkII top

 Wild Vision Hawk V9 MkII (top)

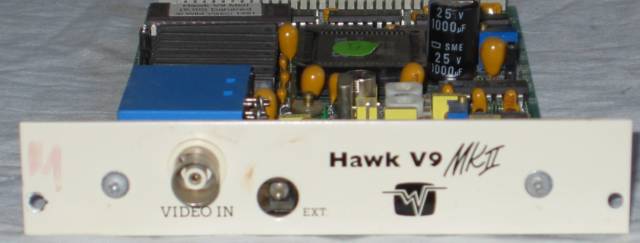

Wild Vision Hawk V9 MkII back

 Wild Vision Hawk V9 MkII (back)

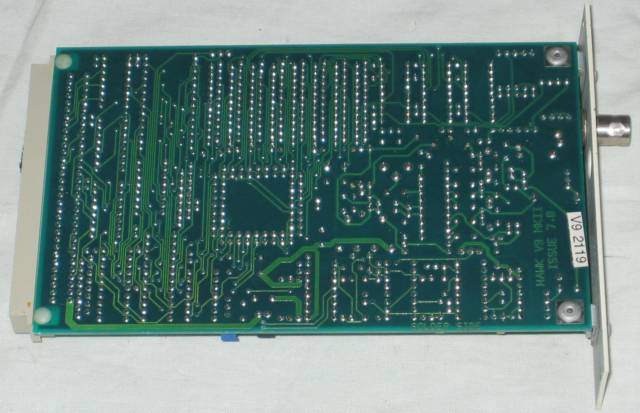

Wild Vision Hawk V9 MkII bottom

Wild Vision Hawk V9 MkII (bottom)

The Wild Vision Hawk V9 MkII is a Real Time Colour Video Digitiser for use with Acorn Archimedes computers. It is designed to capture high quality colour sprites for use in RISC OS applications. It can produce both live colour displays on the desktop and high quality sprites which can be dragged to other applications The digitiser is a single width podule. The digitiser accepts any composite PAL video input signal (e.g. video camera or recorder) via a BNC connector. The signal is converted to RGB and digitised in real time as 3 five bit per pixel data streams, givng a 512 x 256 picture.

Here is the Wild Vision Hawk V9 Application Software manual.
Here is the Wild Vision Hawk V9 MkII User Guide.
Here is the Wild Vision documentation for the HawkV9Utils support module .

Here is an archive of the Wild Vision Hawk V9 MkII (Dithered) Distribution Disc.
Here is an archive of the Wild Vision !FastGrab 2 disc .
