Sprow Master 10/100 Net ethernet module

[Index by function ] [Index by Company ]

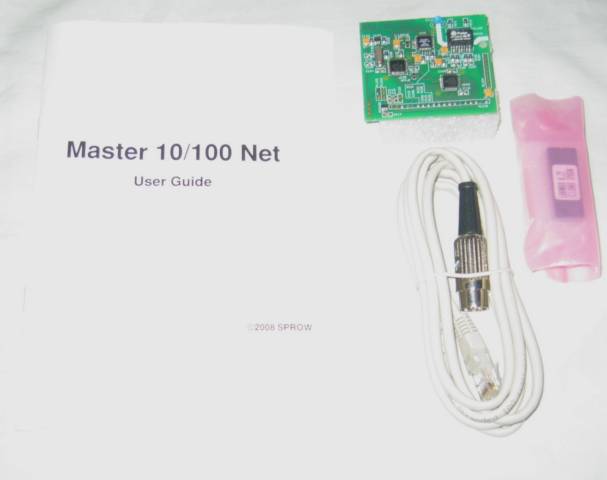

Sprow Master 10/100 net ethernet module

Sprow Master 10/100 Net ethernet module

Sprow Master 10/100 Net ethernet module fitted

Sprow Master 10/100 Net ethernet module fitted in a Master

The Master 10/100 Net ethernet module allows a BBC Master to communicate with an Ethernet network, sharing folders and peripherals with other computers. The board comes with the following features:

10/100Mbps data transfer
Automatic connection of crossover cables allowing 2 computers to be directly connected without a switch or hub
Automatic negotiation of link options to minimise setup complexity
76kbytes of RAM for packet buffers to speed transfers
1kbyte of non volatile memory to save the network configuration.

The network software supports ARP, DHCP, TCP/IP, UDP, DNS, NETBIOS, SMB AND ICMP.

I have installed the Master 10/100 Net ethernet module in an upgraded Master 128 and found that it works very well. it was easy to install and configure. When connected to my home LAN, it used DHCP to request and recieve an IP address, Net mask, Gateway and DNS address. It used both a local hosts file and DNS to resolve network addresses and I could ping other computers on the LAN. It connected to a PC running Windows 2000 server in a workgroup and I was able to access files from the PC on the Master. I could also connect to a Risc PC and access a shared directory via SMBServer! I intend to use it to transfer BBC discs to my PC and then to Chris's Acorns.

Here is the Master 10/100 Net User Guide . kindly supplied by Sprow.

Futher details, including how to buy it, are on Sprow's web pages .
