A680

[Previous ] [Back] [Next ]

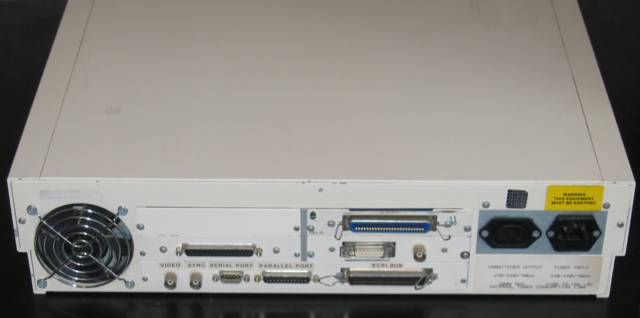

A680 back

A680 back view

 The back of the A680 showing the ports. On the left is the cooling fan and on the right is the power in and out sockets. In between are the ports, on the bottom from left to right are: Video and Sync BNC connectors, serial port, parallel port and SCSI port. Above are the podules, on the bottom left is the Laser printer podule, on the top right is the SCSI podule and on the bottom right is the "Lance" Ethernet port.
