Acorn AKA25 Ethernet podule

[Index by function ] [Index by Company ]

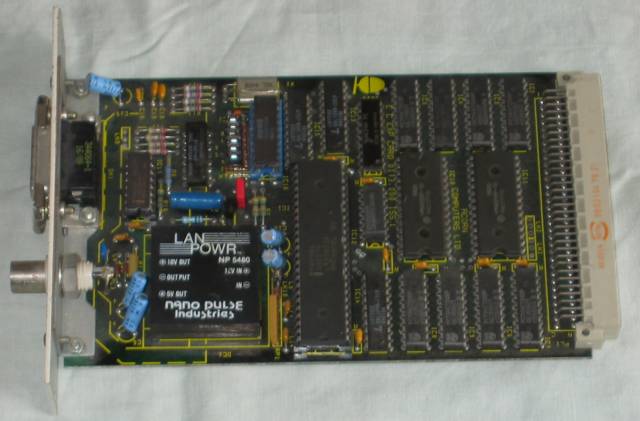

Acorn AKA25 Ethernet podule top

Acorn AKA25 Ethernet podule (top)

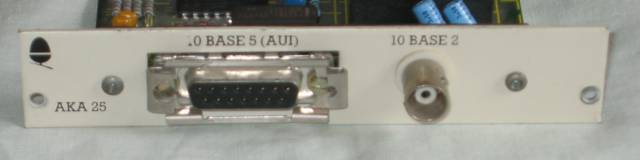

or Acorn AKA25 Ethernet podule back

Acorn AKA25 Ethernet podule (back)

Acorn AKA25 Ethernet podule bottom

Acorn AKA25 Ethernet podule (bottom)

The Acorn AKA25 Ethernet podule is based on the Intel 82586 chip. It has 10Base2 and AUI (labelled as "10Base5" connectors. The podule does not have its software in ROM, so the must be loaded from disc (!System) when the card is initialised. It uses the Ether1 driver. The podule was fitted to the R140 Unix Workstation as standard and could be fitted as an upgrade to any Archimedes computer.
