Acorn AMD10 1 Slot Backplane

[Index by function ] [Index by Company ]

Acorn AMD10 1 Slot Backplane front

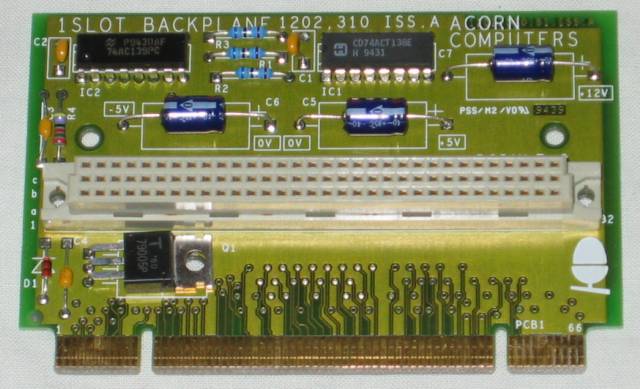

Acorn AMD10 1 Slot Backplane Issue A (front)

This Acorn 1 slot backplane is used in the Online Media Set Top Box STB1. It is a pre-production model because it is Issue A.

Acorn AMD10 1 Slot Backplane back

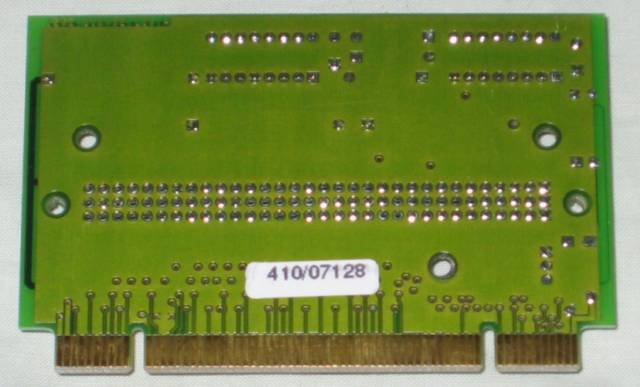

Acorn AMD10 1 Slot Backplane Issue A (back)

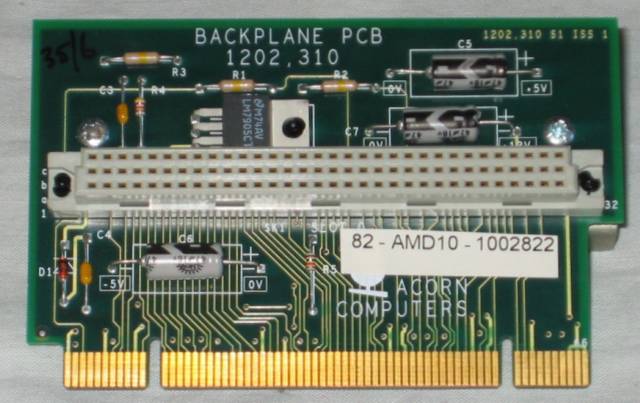

Acorn AMD10 1 Slot Backplane Issue 1 (front)

This Acorn 1 slot backplane came from an A7000. It is a production model because it is Issue 1

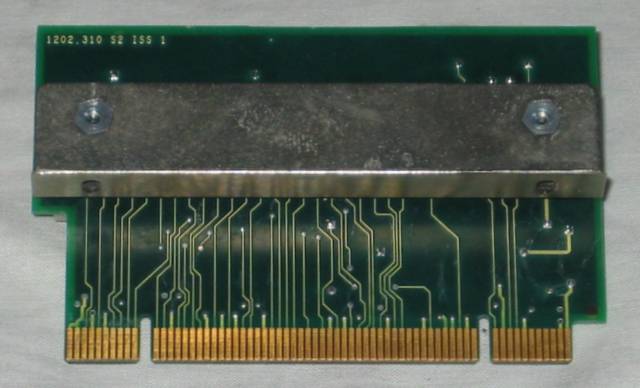

Acorn AMD10 1 Slot Backplane Issue 1 (back)

The Acorn AMD10 1 Slot Backplane is a single slot backplane for use with the A7000 and A7000+. It is short enought for the A7000 top cover to be closed properly whereas a Risc PC 2 Slot Backplane is a bit too tall. It can only be fitted to an A7000 if a CDROM is not fitted as the CD-ROM drive and podule would occupy the same space.
