Acorn Mouse (Type 4)

[Index by function ] [Index by Company ]

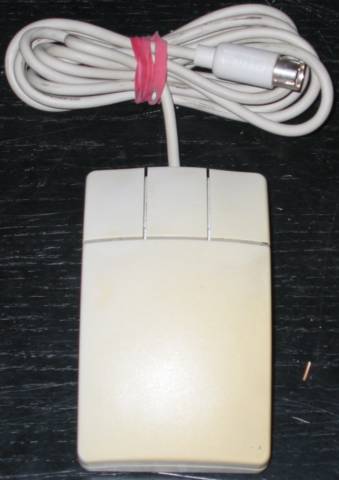

Acorn Mouse Type 4 top

Acorn Mouse (Type 4) (top)

Acorn Mouse Type 4 bottom

Acorn Mouse (Type 4) (bottom)

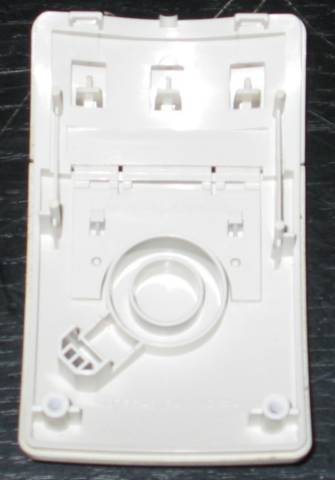

Acorn Mouse Type 4 inside top

Acorn Mouse (Type 4) inside (top)

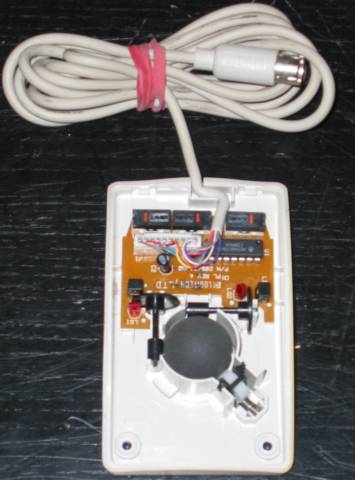

Acorn Mouse Type 4 uncased

Acorn Mouse (Type 4} with top removed

This 3 button mouse replaced the Acorn Mouse Mk3 and was shipped with the Risc PC, so I have called it the Acorn Mouse (Type 4), The mouse is made by Logitech and is a model M-P30. The Acorn part number is 0914,002.

The pictures show:

The top of the mouse showing the 3 buttons.
The bottom of the mouse showing the Acorn serial number (72-ACB25-1015512 - ACB25 is the product code for a Risc PC 600), the mouse ball with a removable collar which enables you to clean it, the Logitech label and the 4 circular plastic pads which the mouse slides on. This mouse came with my original Risc PC 600 which I bought in 1994.
The inside top of the mouse showing the buttons which press the button switches.
The mouse with the top cover removed showing the mouse cable termination at the top, the 3 switches which detect the button clicks, the ball, rollers and sensors in the middle.
