Audio Dynamics Dual MIDI Interface DMI50

[Index by function]      [Index by Company ]

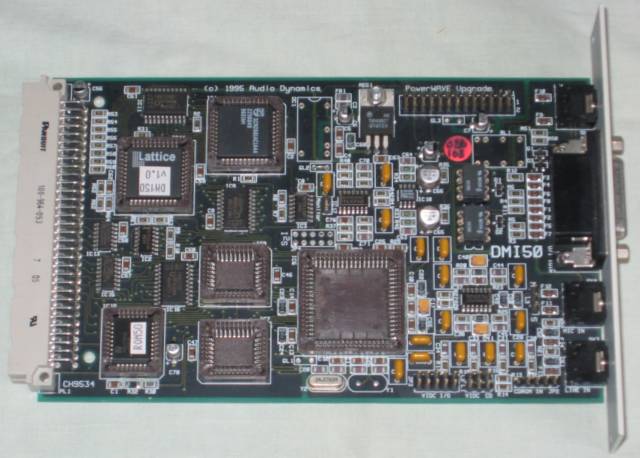

 Audio Dynamics DMI50 (top)

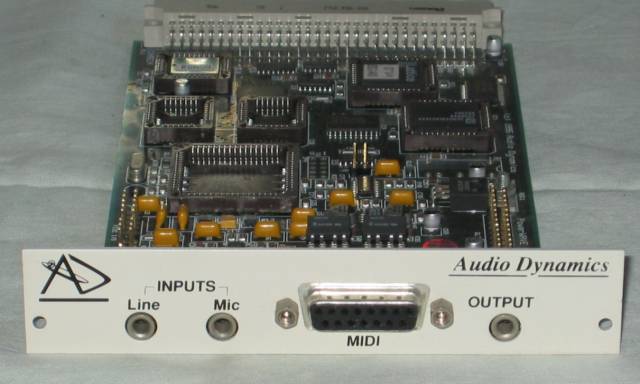

 Audio Dynamics DMI50 (back)

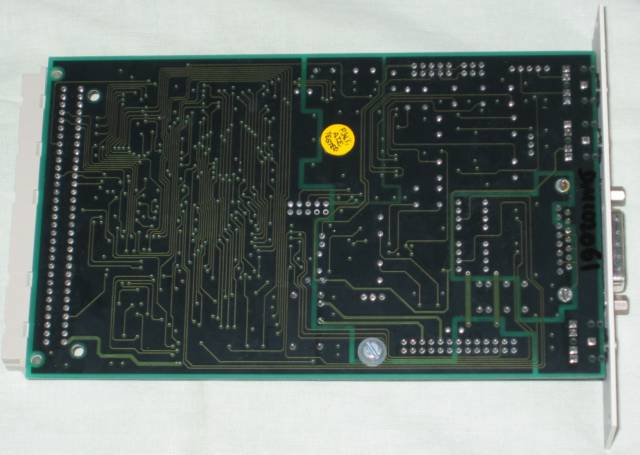

 Audio Dynamics DMI50 (bottom)

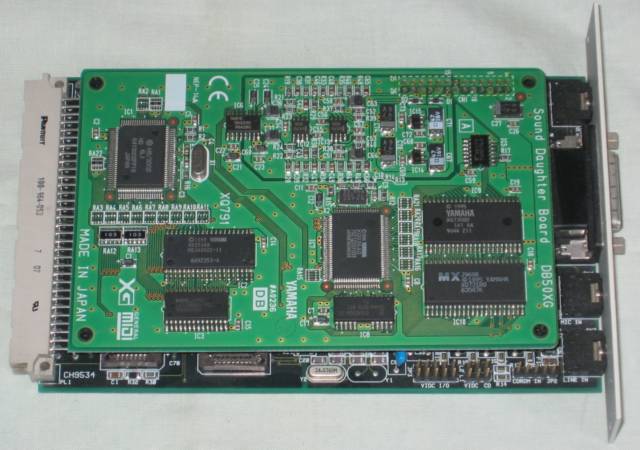

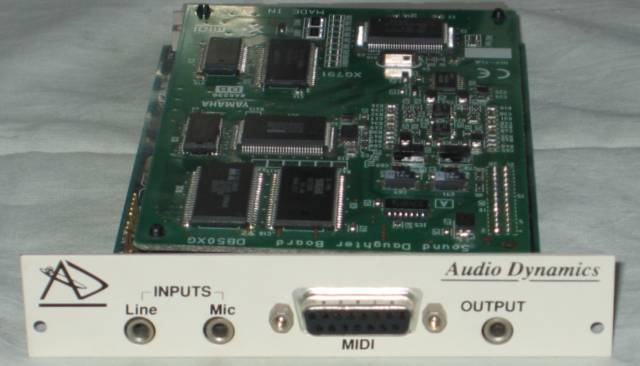

 Audio Dynamics DMI50 with PowerWAVE XG (top)

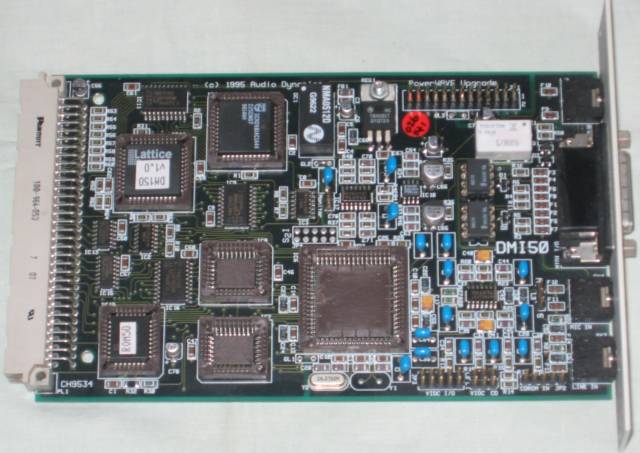

 Audio Dynamics DMI50 with PowerWAVE XG removed

 Audio Dynamics DMI50 and PowerWAVE XG (back)

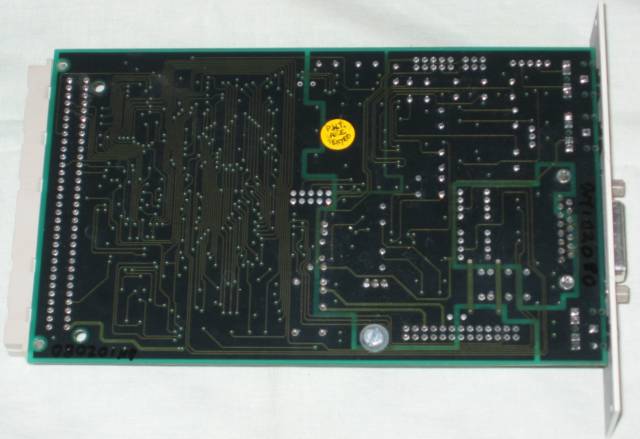

 Audio Dynamics DMI50 and PowerWAVE XG (bottom)

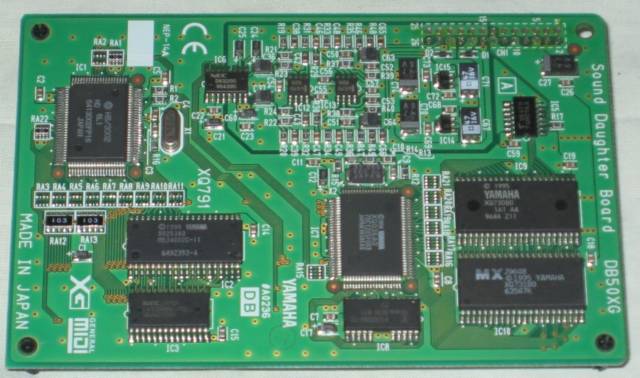

Yamaha DB50XG Sound Daughter Board (top)

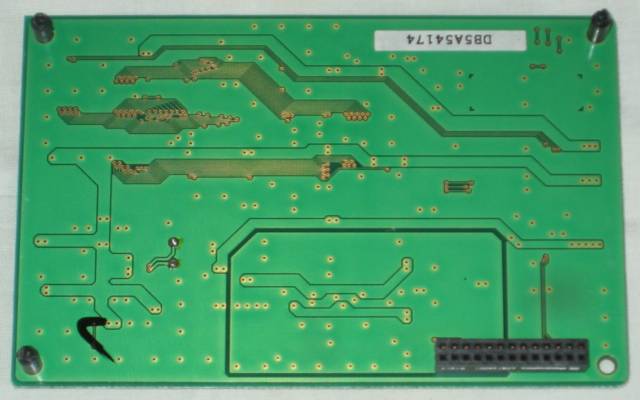

Yamaha DB50XG Sound Daughter Board (bottom)

The Audio Dynamics DMI 50 is a dual MIDI interface for the Acorn A5000 and Risc PC. In addition to MIDI the DMI50 offers 16bit CD quality sampling capabilities. There are 5 variations:

1. DMI 50 - Dual MIDI interface.
2. PowerWAVE 50 XG - Dual MIDI interface + Yamaha Wave table Synthesis.
3. DMI50-S - Dual MIDI Interface + 16bit sampling and mixing.
4. PowerWAVE 50 XG-S - Dual MIDI interface + Yamaha Wave table Sythesis + 16 bit sampling and mixing.
5. Control Sampler - 16bit sampling and mixing.

The first 3 pictures above show a DMI50.

The next 6 pictures show a PowerWAVE 50 XG.

Here is the Audio Dynamics DMI manual.
Here is the Audio Dynamics PowerWAVE XG manual.
Here is the ESP Product Supplement Autumn 1997  which covers the different variations.
