  Computer Concepts FaxPack

[Index by function]  [Index by Company]

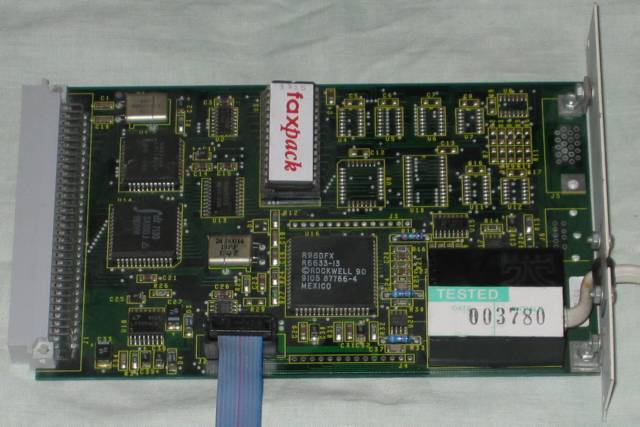

 Computer Concepts FaxPack top

Computer Concepts FaxPack (top)

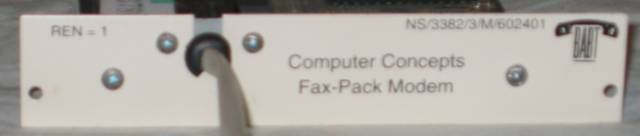

Computer Concepts FaxPack back

 Computer Concepts FaxPack (back)

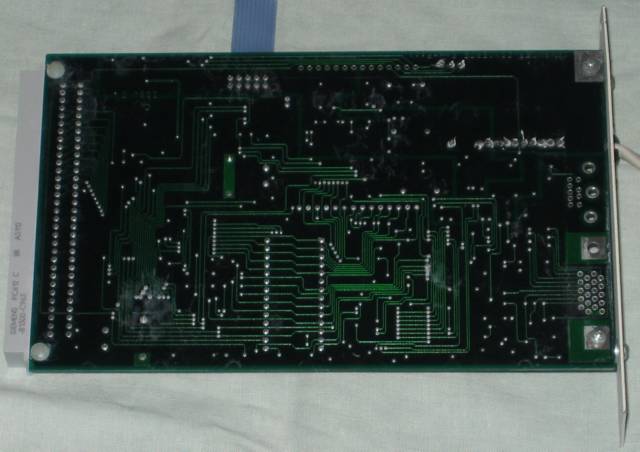

Computer Concepts FaxPaxk bottom

Computer Concepts FaxPack (bottom)

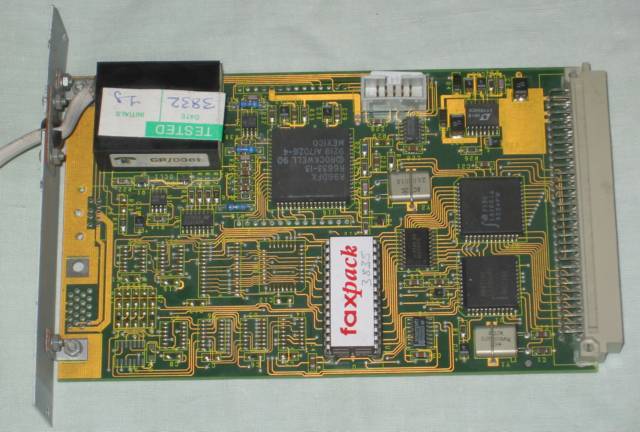

CC Faxpack top

 Computer Concepts FaxPack Issue 2 (top)

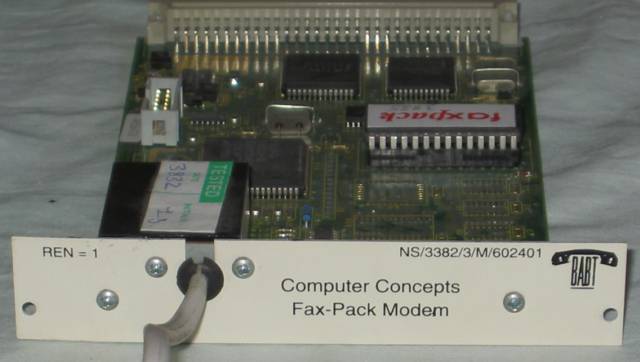

CC Faxpack back

  Computer Concepts FaxPack Issue 2 (back)

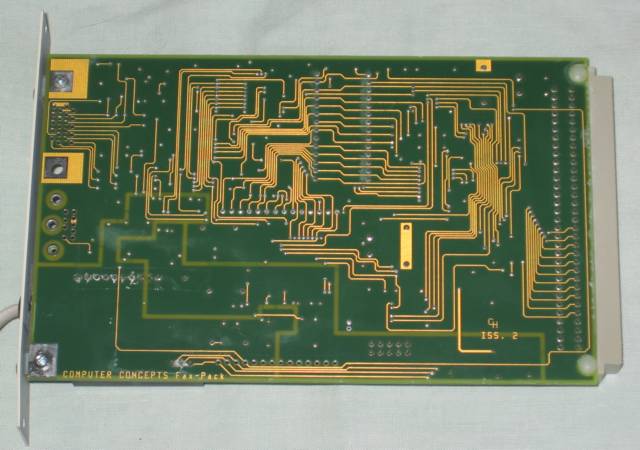

CC Faxpack bottom

Computer Concepts FaxPack Issue 2 (bottom)

Here are two examples of the Computer Concepts FaxPack. It is a fax modem on a podule card. It plugs into your telephone line and together with the software turns your Archimedes into a fax machine. The ribbon cable, visible in the top pictures, plugs into the motherboard and allows you to monitor the progress of calls via the internal speaker. The Faxpack is designed around a Rockwell R96FDX/R6633-13 9600bps Fax modem chip with DTMF

I do not have the support software or user manual.
