Gnome Computers Transputer Link Adapter

[Index by function ] [Index by Company ]

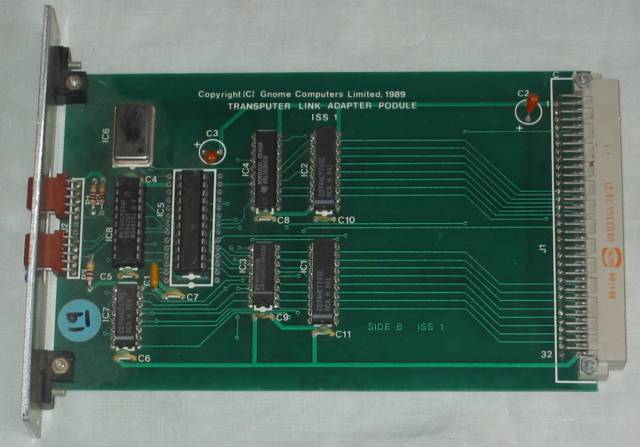

Gnome Transputer Link Adapter top

Gnome Computers Transputer Link Adapter (top)

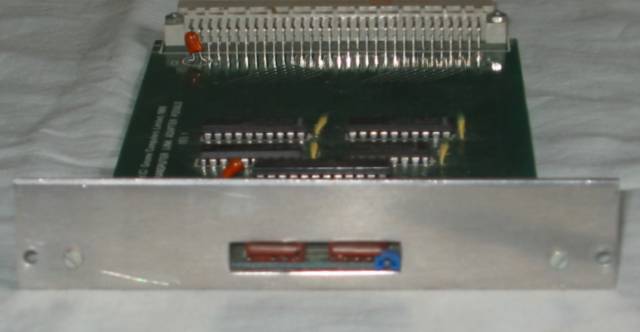

Gnome Transputer Link Adapter back

Gnome Computers Transputer Link Adapter (back)

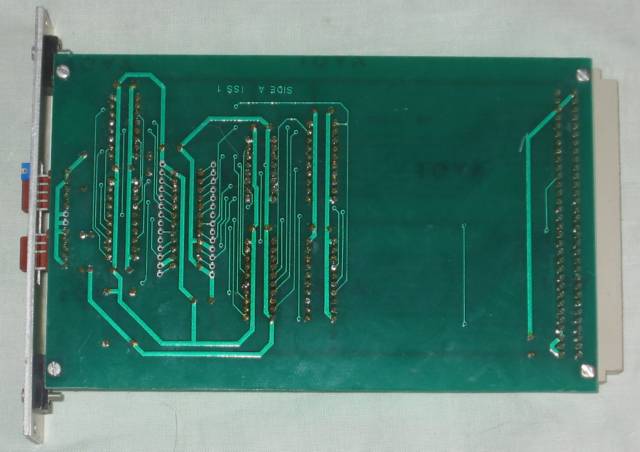

Gnome Transputer Link Adapter bottom

Gnome Computers Transputer Link Adapter (bottom)

Gnome Computers developed a programming environment for use on the Archimedes based on the Inmos Transputer Development System. It included 3 podules:

Link Adapter which allows communicationat 10 or 20 MHz (this podule)
TRAM Motherboard
Transputer Baseboard which houses a T4 or T8 transputer and 1-8MB RAM

This is the Link Adapter which connects to another Link Adapter to give high speed computer to computer communication. The podule uses the Inmos IMSC012-20.
