  HCCS A3000 SCSI Interface

[Index by function]  [Index by Company ]

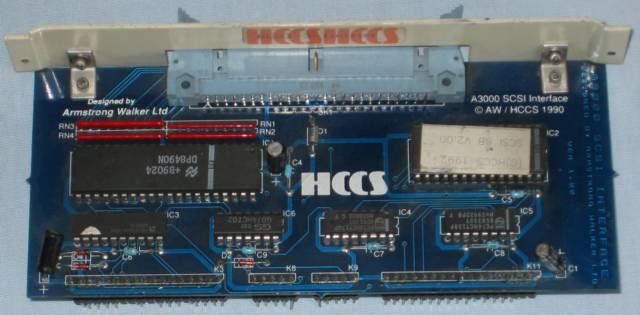

 HCCS A3000 SCSI IF top

HCCS A3000 SCSI Interface (top)

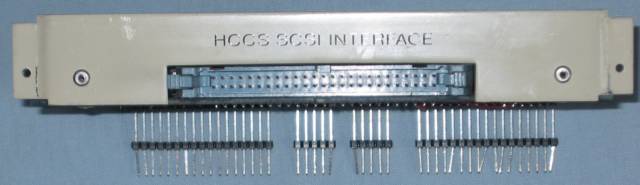

 HCCS A3000 SCSI Interface (back)

 HCCS A3000 SCSI Interface (back)

 HCCS A3000 SCSI Interface bottom

 HCCS A3000 SCSI Interface (bottom)

The HCCS A3000 SCSI Interface is an internal 8 bit mini-podule and supports external SCSI devices. It uses the NatSemi D8490N SCSI-1 controller and has a 50pin external interface.

Here is the HCCS SCSI User Guide.

Here is the HCCS !SCSIMgr application .
