  HCCS A3000 Ultimate Expansion

[Index by function ] [Index by Company ]

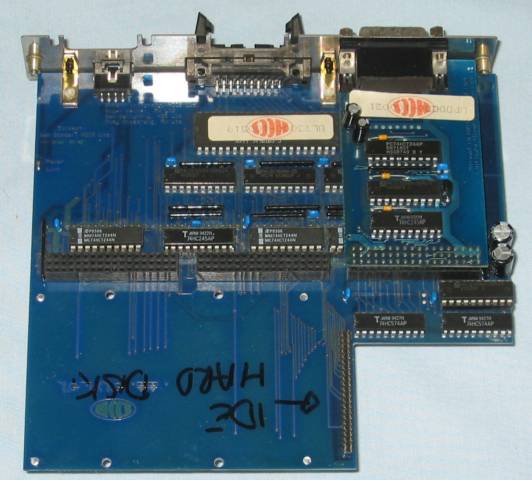

A3000 Ultimate expansion & CDROM micro podule

 A3000 Ultimate expansion with CDROM Micro podule

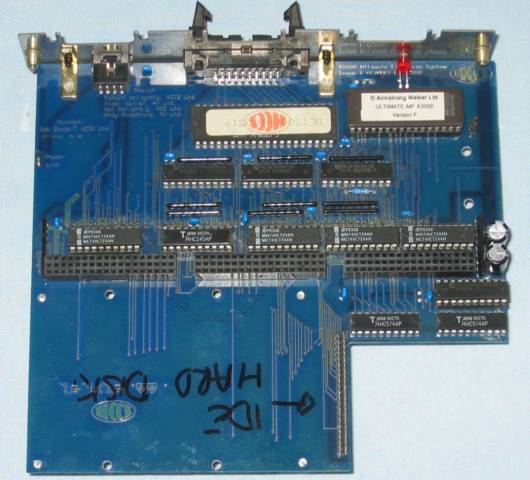

A3000 Ultimate expansion top

 A3000 Ultimate Expansion (top)

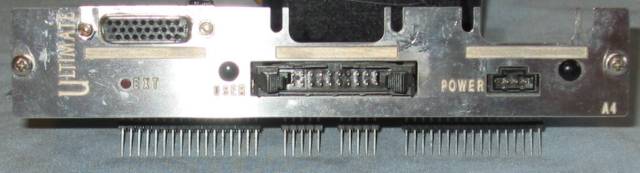

 A3000 Ultimate Expansion back

 A3000 Ultimate Expansion (back)

 A3000 Ultimate Expansion bottom

A3000 Ultimate expansion (bottom)

The limited expansion capability of the A3000 encouraged the development of multi-function cards. The A3000 Ultimate expansion card has a user prot built in, slots for 3 micro podules and space for a 2.5" hard disc. This card has a Mitsumi CDROM micro podule  installed.
