LTC Time Code Reader Mk II

[Index by function ]     [Index by Company ]

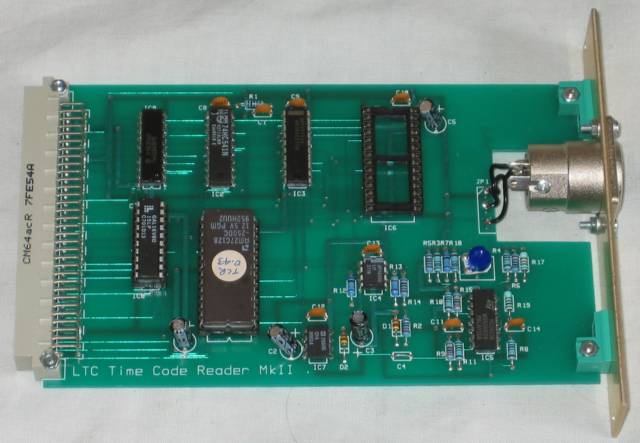

LTC Time Code Reader top

LTC Time Code Reader Mk II (top)

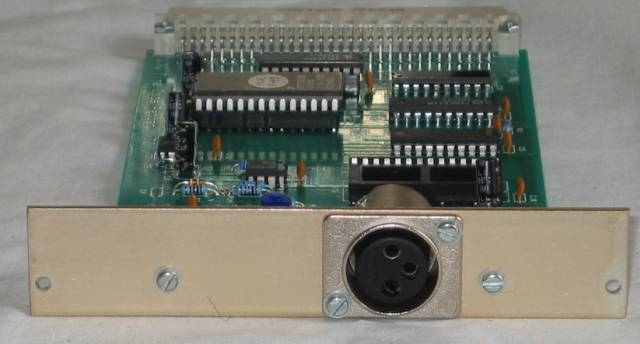

LTC Time Code Reader back

LTC Time Code Reader Mk II (back)

LTC Time Code Reader bottom

LTC Time Code Reader Mk II (bottom)

This is an SMPTE LTC (Longitudinal TimeCode) reader podule for use with Acorn computers such as A5000 and Risc PC using a standard Acorn podule connector. The card requires an OTARI I-OO55 LTC chip to be added to the IC 6 socket on the board before it can actually be used to read code.

I am not sure who the manufacturer of this card is. The only evidence is that both the module and card appear to come from "LTC". However I suspect LTC actually means Linear (or Longitudinal) Timecode  which encodes SMPTE timecode  data.

SMPTE timecode is a set of standards to label individual frames of video or film with a timecode. Timecodes are added to film, video or audio material, and have also been used to synchronise music. They provide a time reference for editing, synchonisation and identification. Timecode is a form of media metadata.

I have no documentation or software for the LTV Time Code Reader MkII.
