Pineapple Digitiser

[Index by function]   [Index by Company]

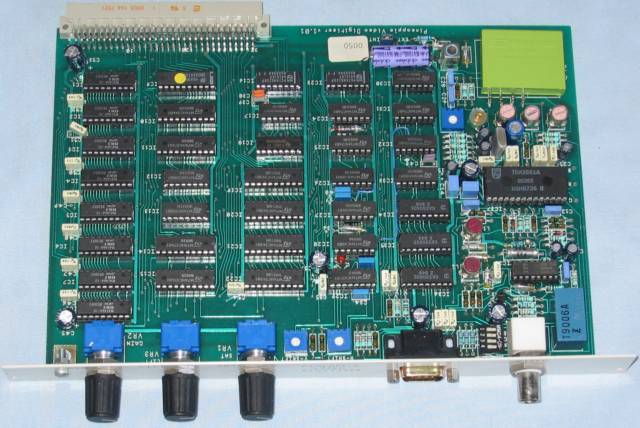

Pineapple Video Digitiser v1.01 top

Pineapple Colour Video Digitiser v1.01 (top)

 Pineapple Video Digitiser V1.01 back

 Pineapple Colour Video Digitiser v1.01 (back)

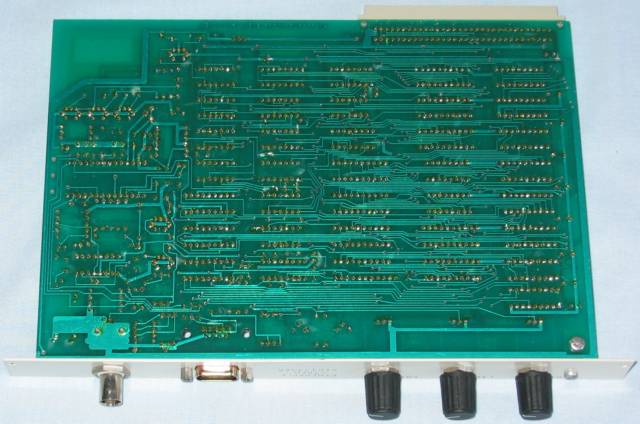

 Pineapple Video Digitiser v1.01 bottom

 Pineapple Colour Video Digitiser v1.01 (bottom)

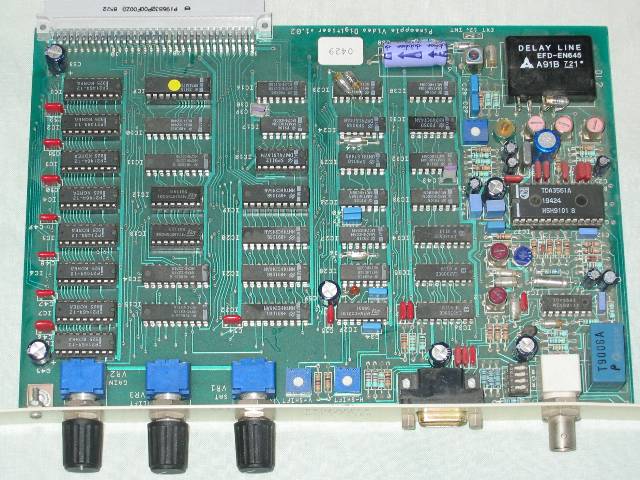

Pinapple Digitizer Issue 1.02 top

Pineapple Archimedes Colour Video Digitiser Issue 1.02 (top)

The Pinapple 16-bit Digitiser is a double width podule for the Archimdes. Pictures 1-3 are version 1.01 and picture 4 is version 1.02. I ca't see any significant differences.

Here is the Archimedes Colour Video Digitiser manual
