Pineapple Software PAL Video Coder

[Index by function ]     [Index by Company ]

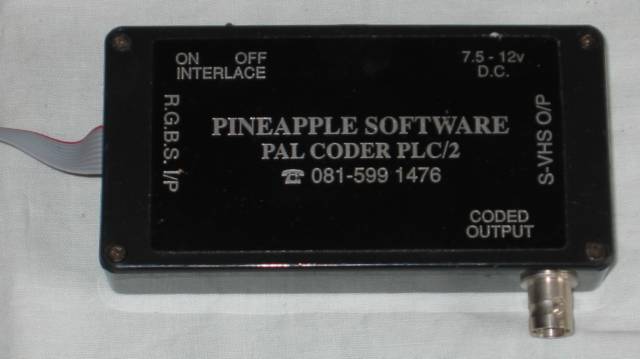

Pineapple PAL Video Coder top

 Pineapple Software PAL Video Coder (top)

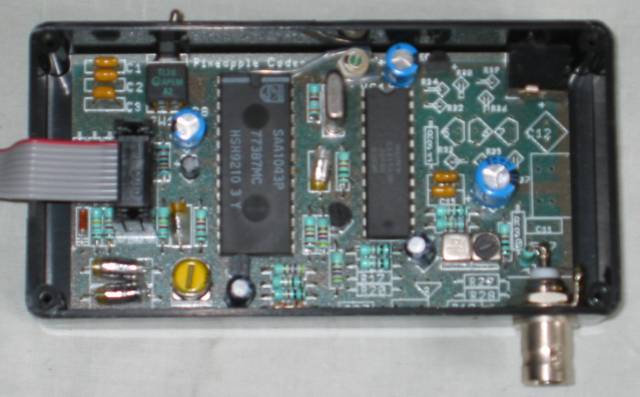

Pineapple PAL Video Coder open

Pineapple Software PAL Video Coder (open)

The Pineapple PAL Video Coder is a small add-on box which plugs in between the computer RGB output and the monitor. As well as providing buffered outputs of RGB for the monitor, it gives a full PAL coded video signal which can be used to feedf either another monitor with a composite input, or a video tape recorder. The box has a switch to enable the coded output to be generated in either a 624 or 625 line compatible mode, thus allowing for interlace to be switched on or off on the computer screen. The PAL Video Coder uses a Philips SAA1043P chip.
