  Risc Developments IDE Controller

[Index by function]  [Index by Company ]

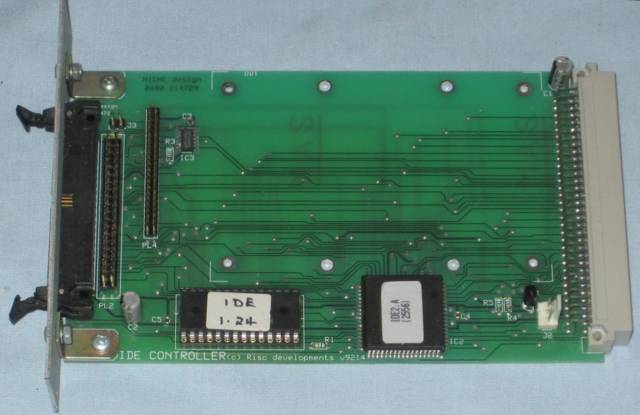

 Risc Developments IDE Controller top

 Risc Developments IDE Controller (top)

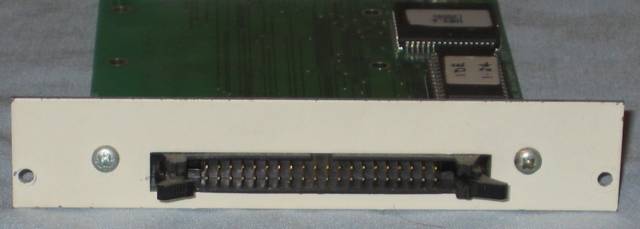

 Risc Developments IDE Controller back

 Risc Developments IDE Controller (back)

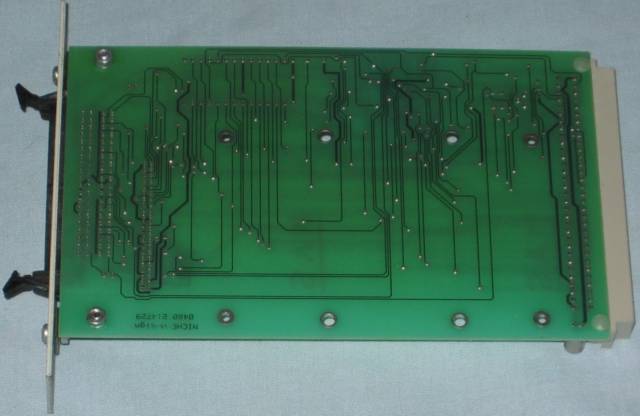

Risc Developments IDE Controller bottom

 Risc Developments IDE Controller (bottom)

The Risc Developments IDE Controller has connections for:

  1. 2.5" IDE hard disc mounted on the card (these were designed as laptop discs)
  2. Internally mounted 3.5" IDE hard disc
  3. External hard disc via the socket on the back.

Here is the Risc Developments IDE Hard Disc System User Guide.

Here is the Risc Developments IDE Formatter .
