SJ Research Nexus socket box

[Index by function ] [Index by Company ]

SJ Research Nexus socket box faceplate

SJ Research Nexus socket box faceplate

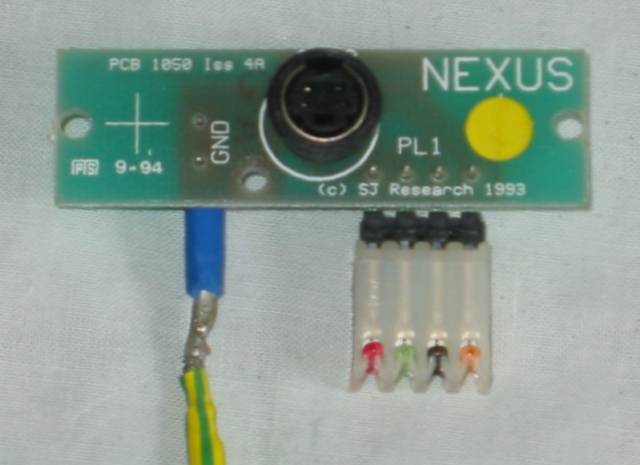

SJ Research Nexus socket box circuit board front

SJ research Nexus socket box circuit board (front)

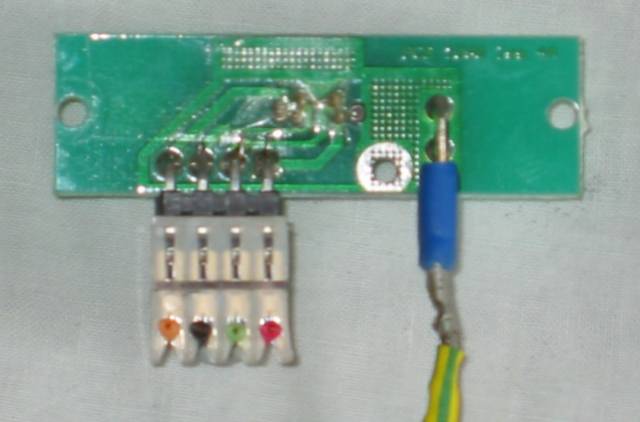

SJ Research Nexus socket box circuit board back

SJ Research Nexus socket box circuit board (back)

The SJ Research Nexus socket box is designed to allow the connection of a computer with a Nexus interface installed to a Nexus network. The socket box is designed to be wall mounted. A drop lead is used to connect the computer to the socket box. The Nexus cable is connected via the white plastic plug with knife edge connectors.
