Simtec 16 bit IDE Interface

[Index by function ] [Index by Company ]

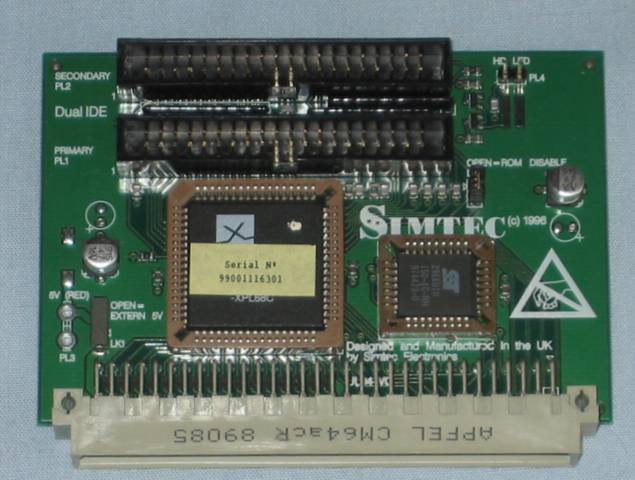

Simtec 16 bit IDE Interface front

Simtec 16 bit IDE Interface (front)

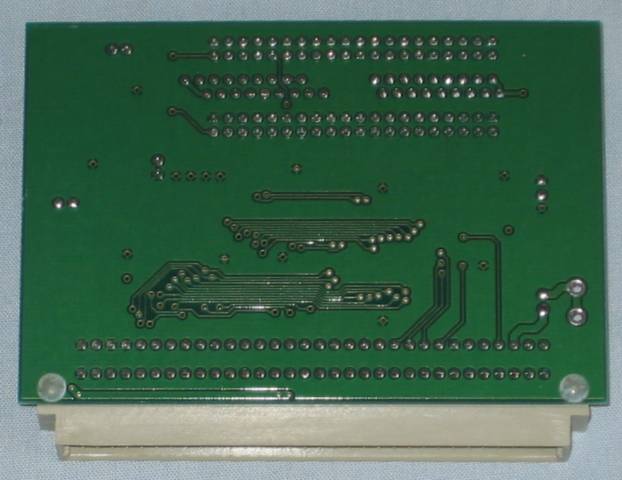

Simtec 16 bit IDE Interface back

Simtec 16 bit IDE Interface (back)

The Simtec 16 bit IDE interface is suitable for the A300, A400, A540, A5000, A70000 and RiscPC. It has 2 ports and can support 4 devices which can be hard discs, CDROMs, ZIP drives and flash memory cards.

Here are the 16 bit IDE Interface Fitting Instructions.

The documentation and software for the 16 bit IDE Interface are still available from the Simtec web site under Legacy products
