  VTi SCSI Interface Issue 2

[Index by function ] [Index by Company ]

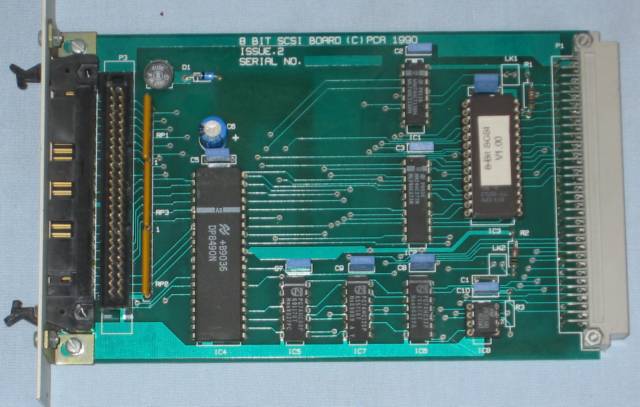

VTi SCSI interface iss 2 top

VTi SCSI Interface issue 2 (top)

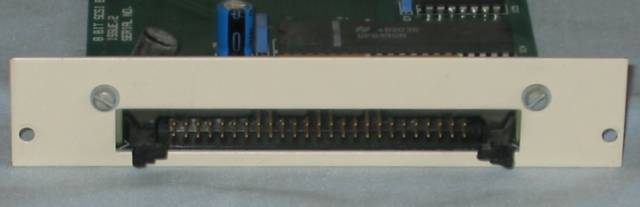

 VTi SCSI Interface Iss 2 back

VTi SCSI Interface Issue 2 (back)

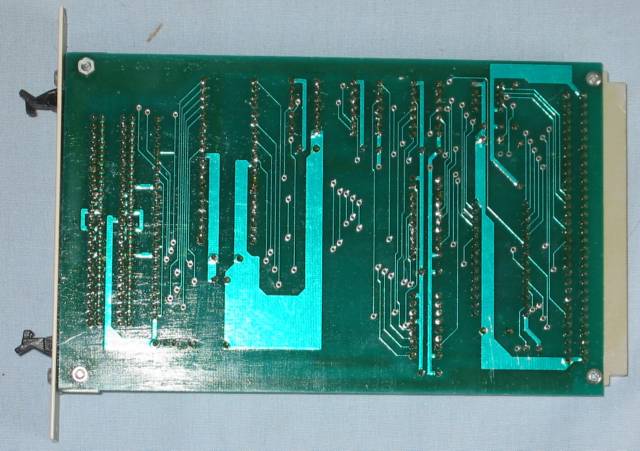

SVTI SCSI Interface issue 2 bottom

VTi SCSI Interface Issue 2 (bottom)

Theis SCSI interface was designewd by PCA and sold by Vertical Twist. It has a 50 pin internal and external connector. The board has a NatSemi DP8490N 8bit SCSI-1 controller and an 8bit SCSI V1.00 ROM.

The Vertical Twist SCSI Card and Drive User's Manual is available HERE.

The Vertical Twist SCSI Utilities disc is available HERE .
