  Watford Electronics Archimedes IDE Interface

[Index by function]  [Index by Company]

 WE Archimedes IDE Interface top

 Watford Electronics Archimedes IDE Interface (top)

 WE Archimedes IDE back

  Watford Electronics Archimedes IDE Interface (back)

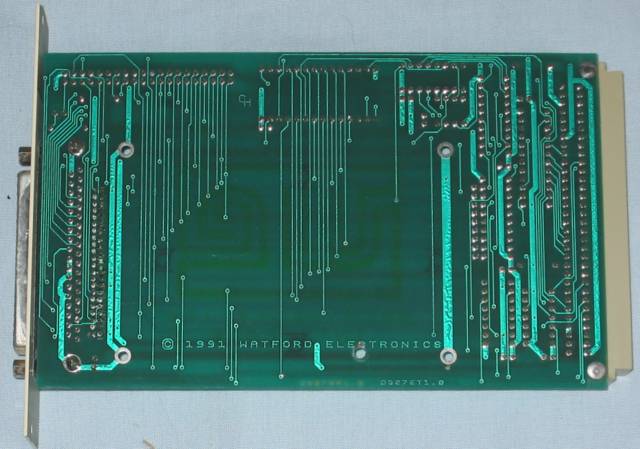

 WE Archimedes IDE bottom

  Watford Electronics Archimedes IDE Interface (bottom)

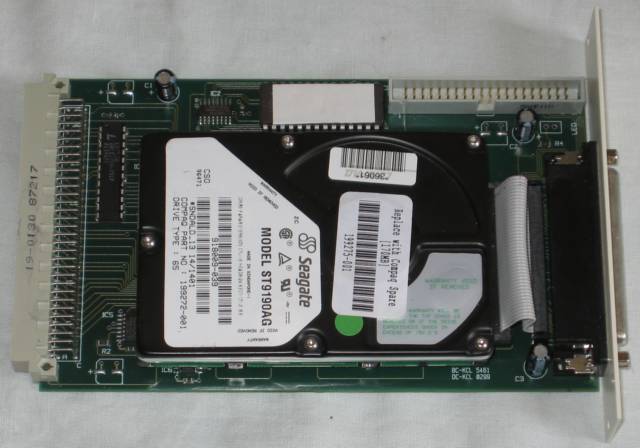

WE Archimedes IDE Interface with disc

  Watford Electronics Archimedes IDE Interface with disc

WE Archimedes IDE Interface top

  Watford Electronics Archimedes IDE Interface (top)

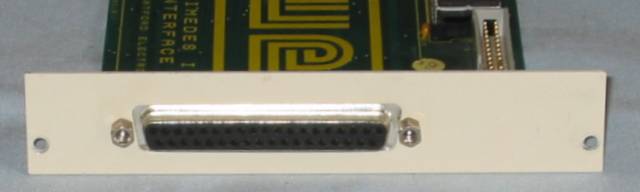

WE Archimedes IDE Interface back

  Watford Electronics Archimedes IDE Interface (back)

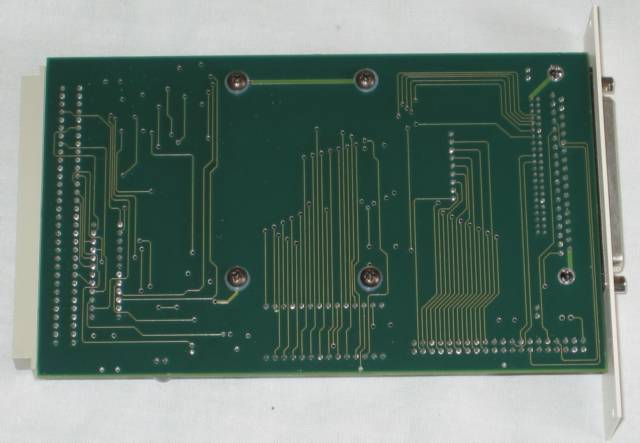

WE Archimedes IDE Interface bottom

  Watford Electronics Archimedes IDE Interface (bottom)

The first IDE interface was made in 1991 and has 3 connectors:

  1. An Internal interface for a 2.5" disc installed on the card
  2. An interal 39 pin connector for a second device installed in the computer
  3. An external 39pin DB socet for an external device

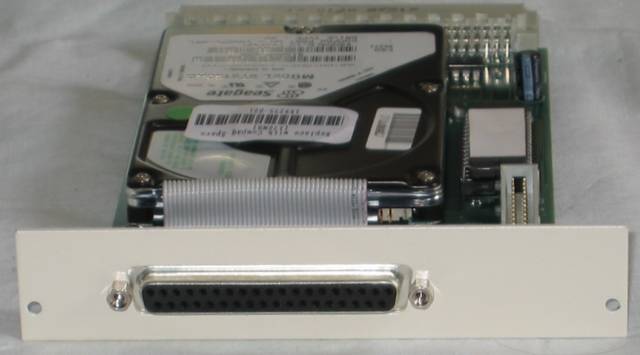

The second IDE interface was bought on ebay from IFEL in 2008, not sure how old it is. There are no identifying marks on the PCB, but the podule identifies itself as a Watford Electronics Archimedes IDE Interface. The connectors are the same but the circuit board has be modernised to use surface mounted componenets. The hard disc is a 170MB Seagate ST9190AG.

An archive of the Watford Electronics IDE Utilities disc  is in the software section.
