Watford Electronics Archimedes Hard Disc podule

[Index by function ] [Index by Company ]

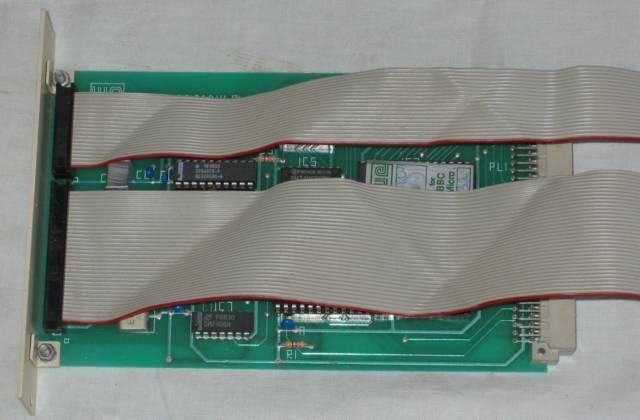

WE Archimedes Hard Disk podule

Watford Electronics Archimedes Hard Disk podule

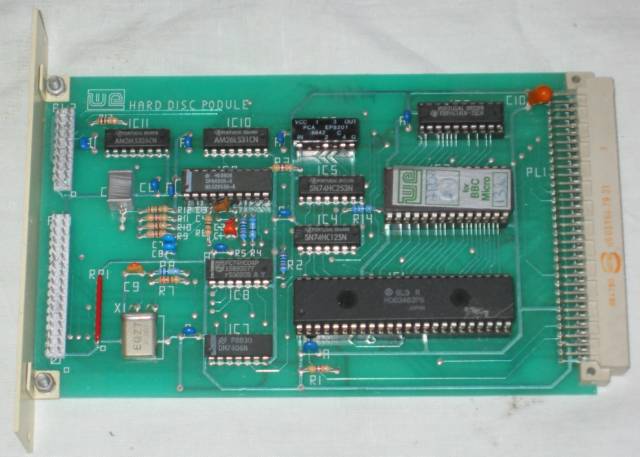

WE Archimedes Hard Disc Podule top

Watford Electronics Archimedes Hard Disk podule (top)

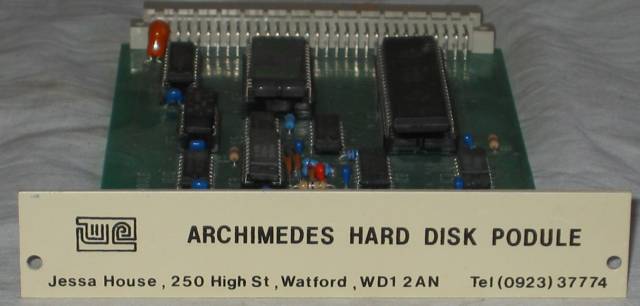

WE Archimedes Hard Disk podule back

Watford Electronics Hard Disk podule (back)

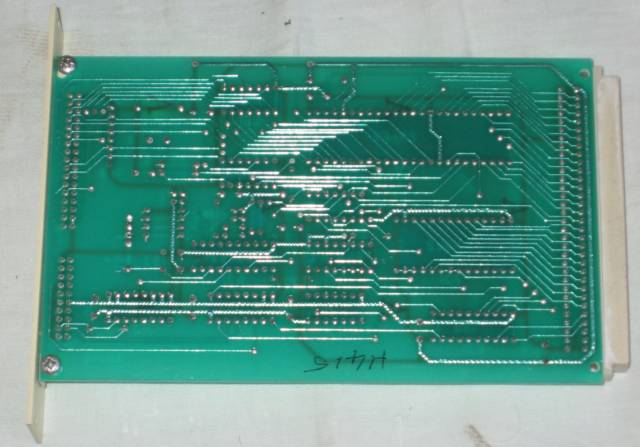

WE Archimedes Hard Disk podule bottom

Watford Electronics Archimedes hard Disk podule (bottom)

The Watford Electronics Hard Disk podule is an ST506 disc controller using the HD63463P8 Hard Disk controller chip. The podule could support 2 ST506 hard discs and was compatible with the Acorn hard disc interface in the A400 and A400/1. Typically it was used in an A300 which did not have a hard disk interface on the motherboard. The controller has 2 ribbon cables, the thin one for commands and the widerone for data.
