  Watford Electronics Scanner Interface

[Index by function ] [Index by Company ]

 Watford Electronics Scanner Interface top

Watford Electronics Scanner Interface 1990 (top)

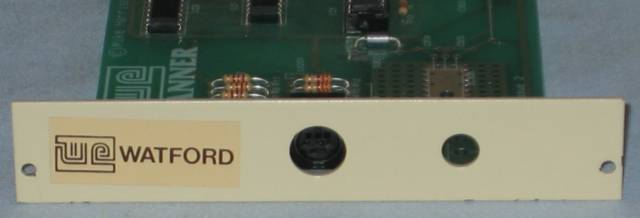

 Watford Electronics Scanner Interface back

 Watford Electronics Scanner Interface 1990 (back)

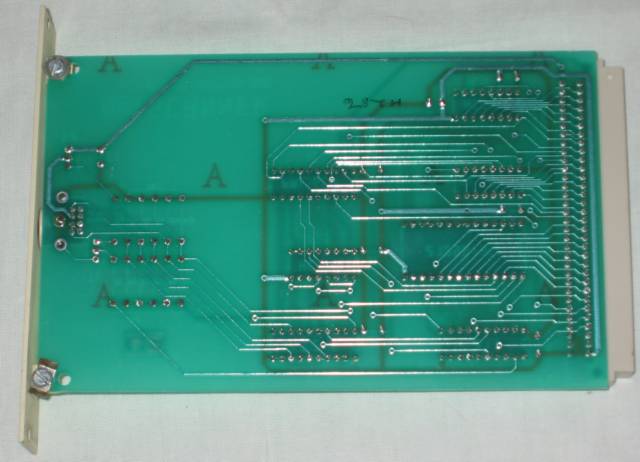

Watford Electronics Scanner Interface bottom

 Watford Electronics Scanner Interface 1990 (bottom)

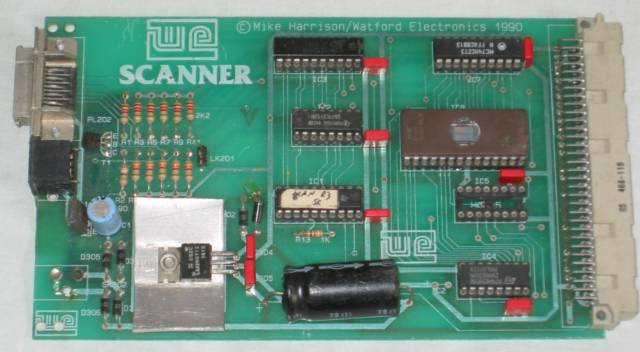

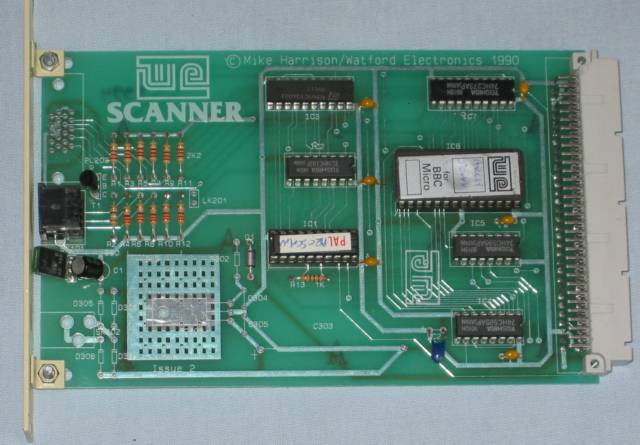

WE Scanner IF 1990 top

 Watford Electronics Scanner Interface 1990 (top)

This board came from Mike Harrison who designed it. It has lost its back plate and has a second connect installed.

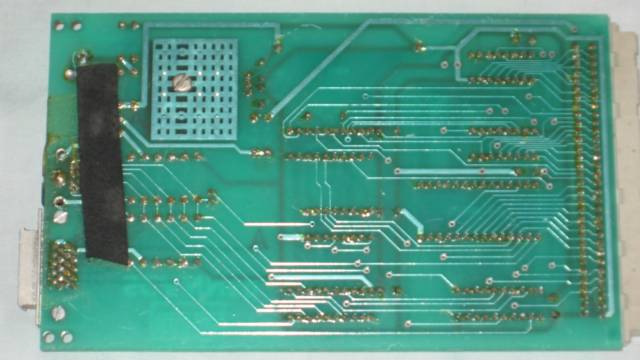

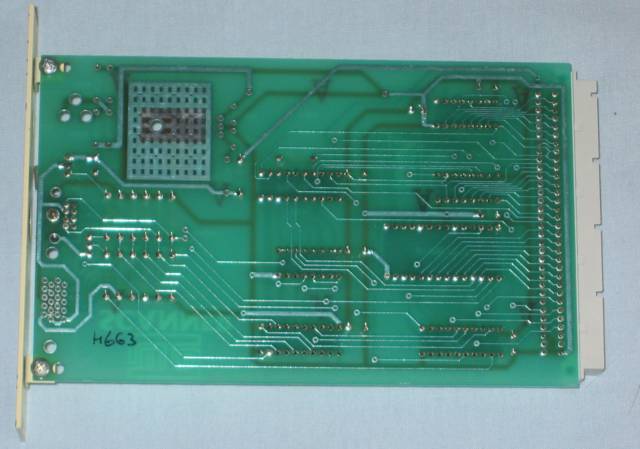

WE Scanner IF bottom

 Watford Electronics Scanner Interface 1990 (bottom)

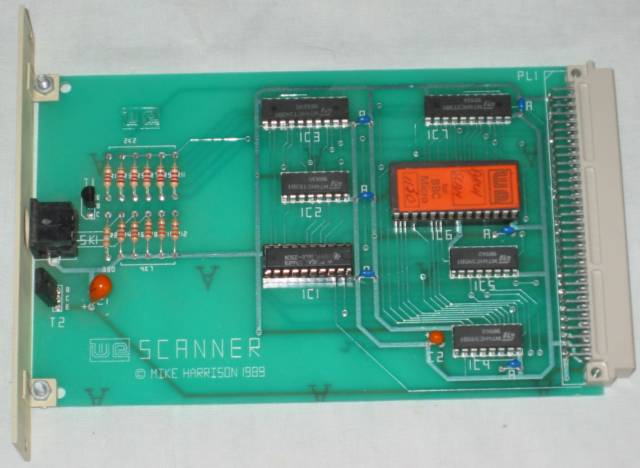

WE Archimedes Scanner top

 Watford Electronics Scanner Interface 1989 (top)

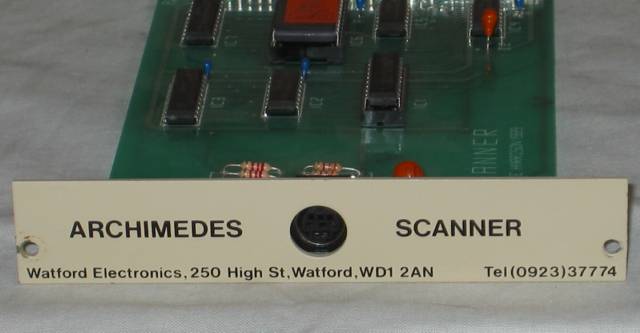

WE Archimedes Scanner back

 Watford Electronics Scanner Interface 1989 (back)

 WE Archimedes Scanner bottom

 Watford Electronics Scanner Interface 1989 (bottom)

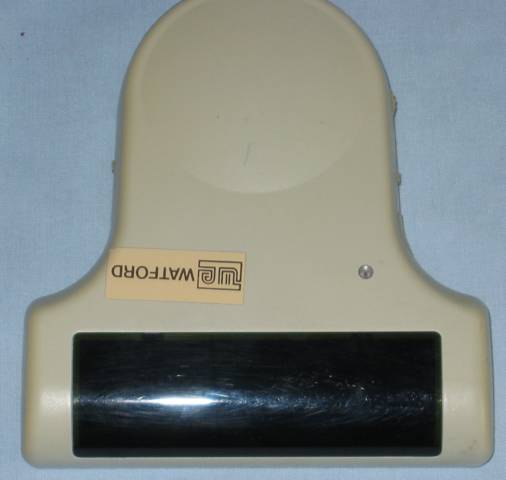

 GeniScan GS4500 hand scanner top

GeniScan GS4500 Hand Scanner (top)

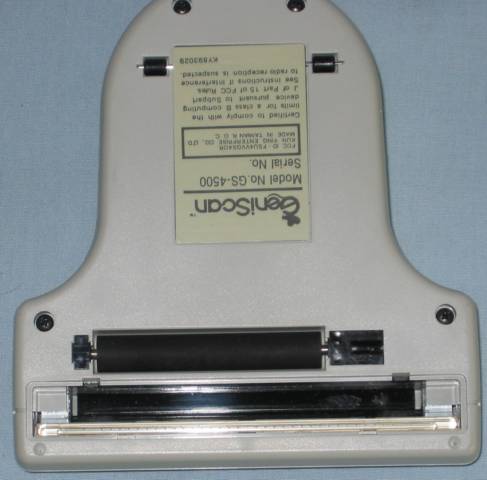

GeniScan GS4500 hand scanner bottom

 GeniScan GS4500 Hand Scanner (bottom)

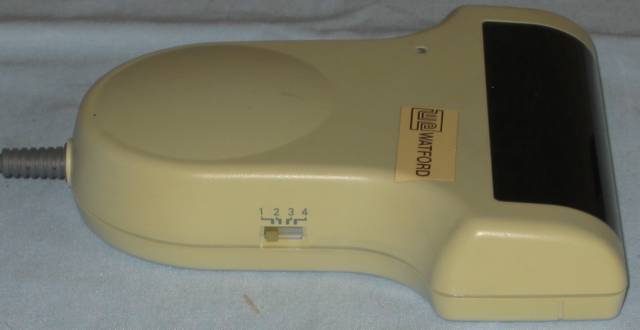

GeniScan Hand Scanner left

GeniScan GS4500 Hand Scanner (left)

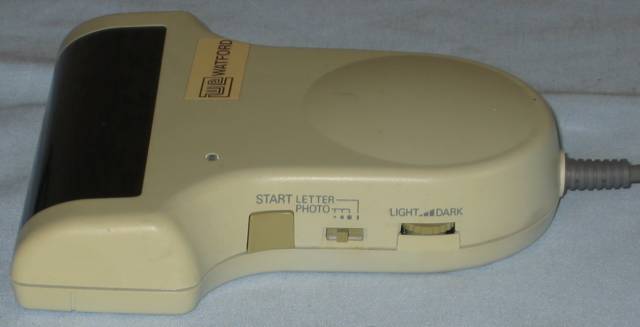

GeniScan GS4500 Hand Scanner right

GeniScan GS4500 Hand Scanner (right)

Here are 3 versions of the Watford Electronics Scanner interface the first 2 from 1990 and the third from 1989. They are typical scanner interfaces of the early 1990s. The interface was supplied with a GeniScan hand scanner.

I have no manual or software for it.
