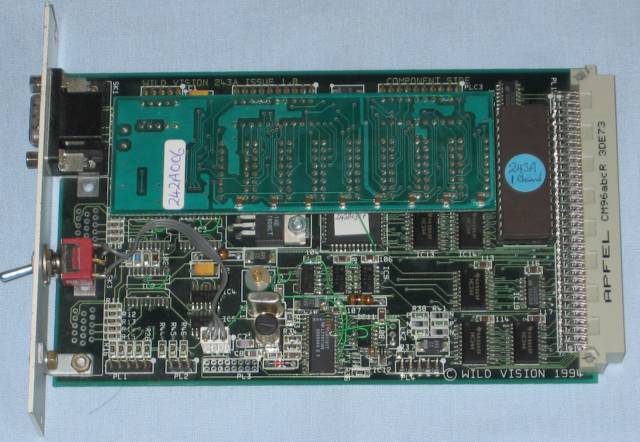

Wild Vision 243A prototype (top)

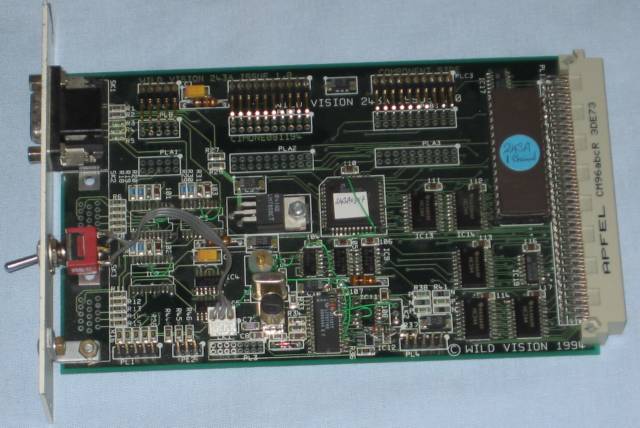

Wild Vision 243A prototype without 242A daughterboard

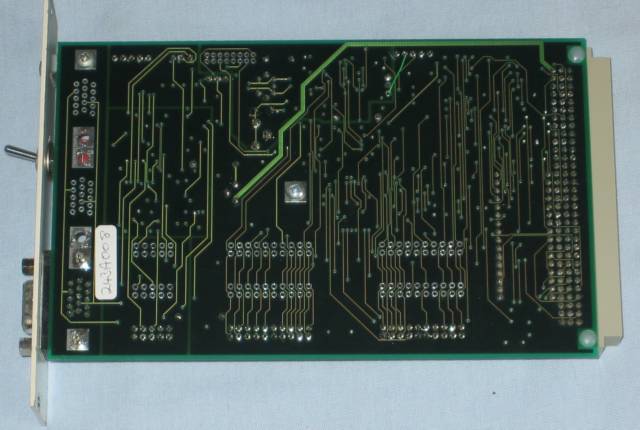

Wild Vision 243A prototype (back)
Wild Vision 243A prototype (bottom)
Wild Vision 242A daughterboard (top)

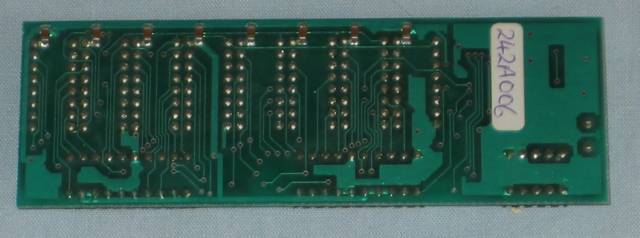

Wild Vision 242A daughterboard (bottom)
This card is a puzzle to me. It shows in *podules as Wild Vision 243A prototype (single digital channel) and loads a dummy module. The 242A daughterboard has a Triple 8bit 80MHz VIDEODAC, i.e. converts analogue video to digital. There is provision on the podule board for 3 daughterboards, but I am not sure how they would fit. There are enough engineering fixes (green wires) to suggest it is genuinely a prototype.. But what was the finished product (if it was finished) and what did it do?
If you can supply further information/documentation on this podule, please email me.
