Acorn AGA30 Analogue & User Port box

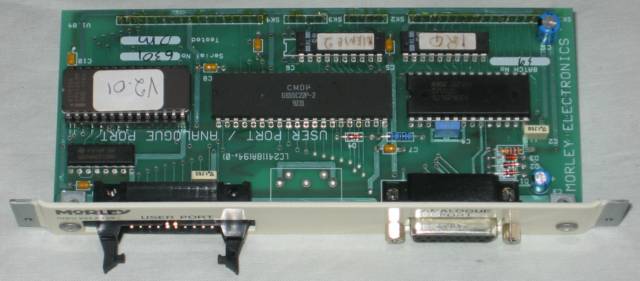

Acorn AGA30 Analogue & User Port (top)

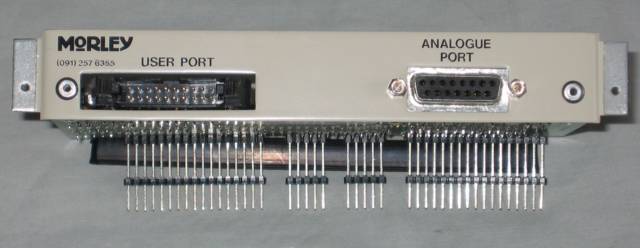

Acorn AGA30 Analogue & User Port (back)

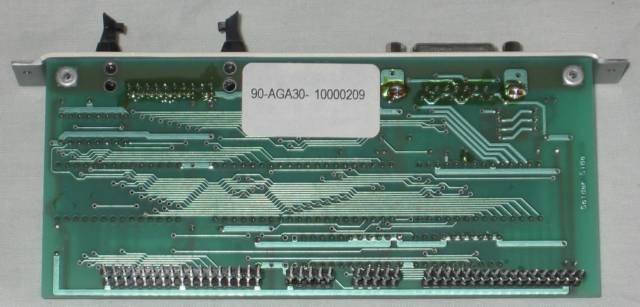

Acorn AGA30 Analogue & User Port (bottom)
The Acorn Analogue & User port mini-podule for the A3000 is manufactured for Acorn by Morley Electonics Ltd. The mini-podule's serial number is 6301 and the ROM version in 2.01. The mini-podule has a CMD G65SC22P-2 CMOS VIA and an NEC D7002C AD converter. It provides an A3000 with a BBC micro compatible User and Analogue port which allows many educational products to be connected.
Here is the Morley Electronics Analoue User Port mini-podule , it has an I2C port which is omitted from this version.
Here is the Morley Electronics Analogue & User Port Expansion Card manual.
Here is the Addendum to the manual.
