Morley Electronics User I2C Analogue mini-podule

[Index by function ]     [Index by Company ]

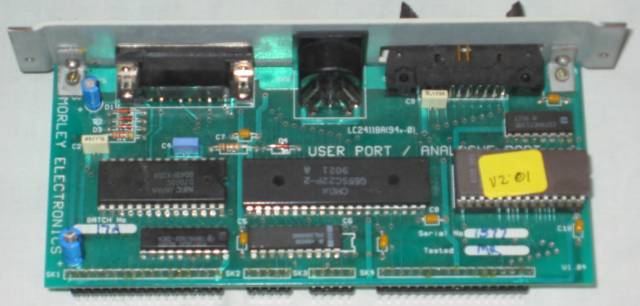

Morley User I2C Analogue mini-podule top

Morley Electronics User I2C Analogue mini-podule (top)

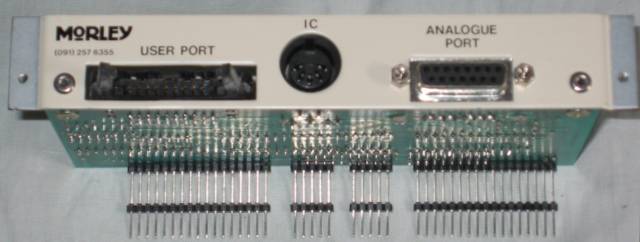

 Morley user I2C Analogue mini-podule back

 Morley Electronics User I2C Analogue mini-podule (back)

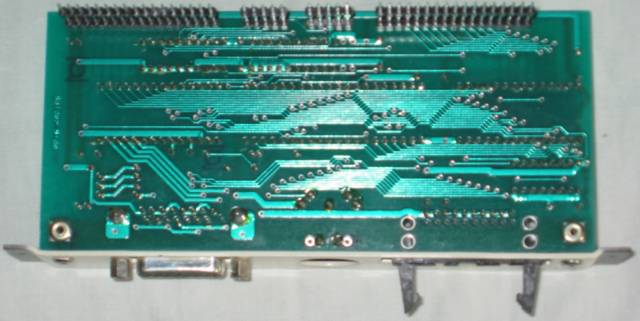

 Morley User I2C Analogue mini-podule bottom

 Morley Electronics User I2C Analogue mini-podule (bottom)

The Morley Electronics User I2C Analogue interface is a mini-podule for the A30x0 and A4000. This card is Batch 17A serial 1577 and the ROM is labelled V2.01. The card is a standard BBC I/O (i.e. User port and Analogue port) with a I2C interface addded. For more information on I2C see Wikipedia .

The Hardware Installation Instructions are HERE .
