Aleph1 486PC (Elvis) Expansion card

[Index by function]  [Index by Company]

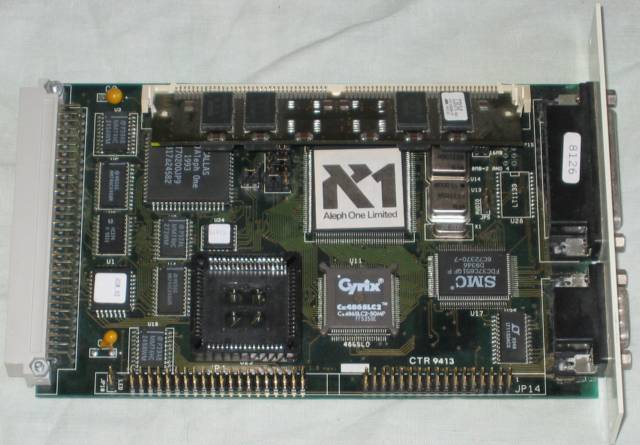

 Aleph1 486 PC Expansion card (top)

Aleph1 486 PC Expansion card (top)

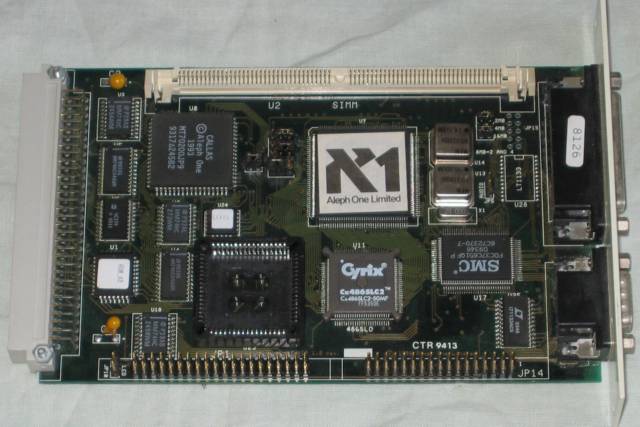

Aleph1 486 PC Expansion card without SIMM

Aleph1 486 Expansion card without SIMM

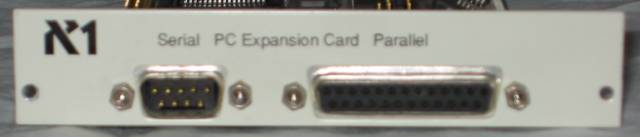

Aleph1 486 PC Expansion card (back)

 Aleph1 486 Expansion card (back)

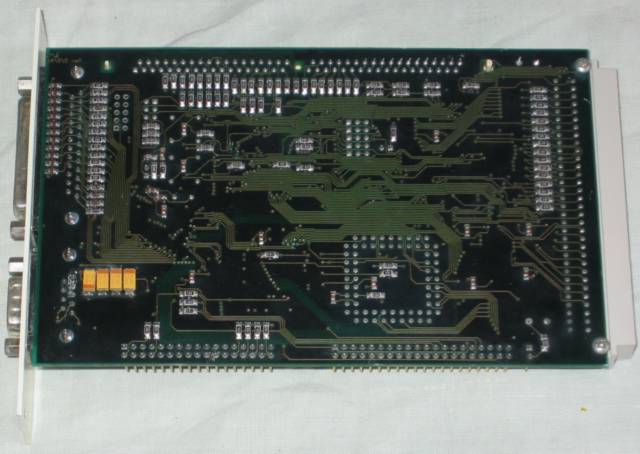

 Aleph1 486 Expansion card (bottom)

Aleph1 486 Expansion card (bottom)

The Aleph1 486PC (Elvis) Expansion card (revision 2) was the third generation of Aleph1 PC Expansion cards. It provided a complete PC on a podule card complete with up to 16MB RAM and an optional 387 FPU. The 486PC Expansion card has a Cyrix 486SLC2 and a 2, 4, 8 or 16 MB SIMM. Unlike the previous generations the Elvis cards has and IDE interface for direct connection of a PC IDE hard disc. It has its own serial and parallel ports (see picture of back). The PC Expansion card enabled an Archimedes to run MSDOS or Windows 3.1 in a RISC OS window.

The Aleph1 PC Expansion Cards User Guide (Issue 5) is available HERE .

Here is the Aleph1 !PC r2.06e  software to configure and run the PC expansion card.
