  i-cubed EtherLan600 NIC

[Index by function }     [Index by Company ]

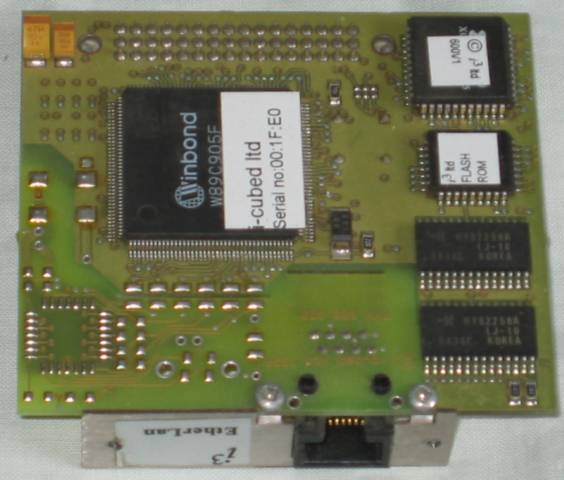

i3 10BaseT EtherLan600 top

 i-cubed 10BaseT EtherLan600 (top)

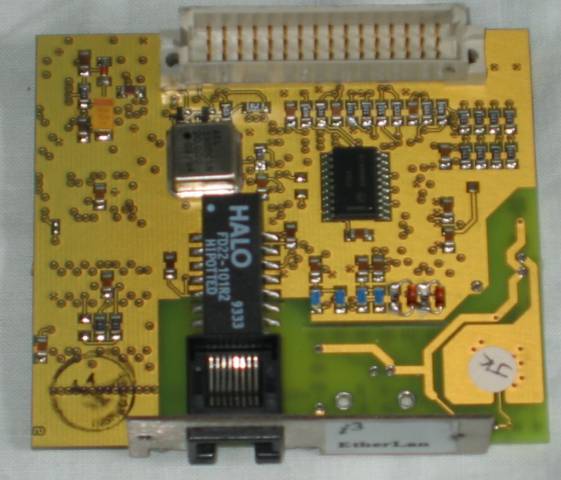

i3 10baseT EtherLan600 back

 i-cubed 10BaseT EtherLan600 (back)

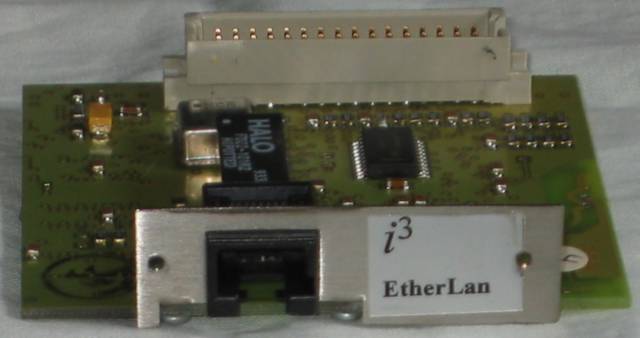

i3 10baseT EtherLan600 bottom

 i-cubed 10BaseT EtherLan600 (bottom)

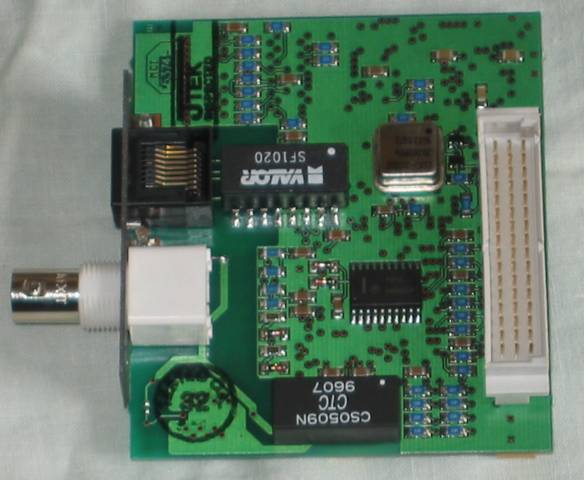

 I3 EtherLAN600 top

 i-cubed EtherLan600 (top)

 I3 EtherLAN600 back

 i-cubed EtherLan600 (back)

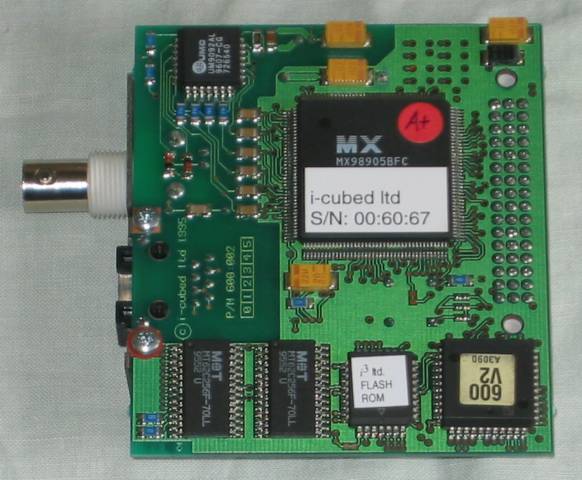

 I3 EtherLAN600 bottom

i-cubed EtherLan600 (bottom)

The i3 EtherLan600 is a Network Interface card for the Risc PC and A7000 which fits in the Network slot. i3 produced 3 versions of the card: The E600 which only supports 10Base2, the E601 which only supports 10BaseT and the E602 combo card which supports both 10Base2 and 10BaseT. The first card (above) is an E601 which only supports 10baseT (RJ45), the second card is an E602 and supports both 10Base2 (BNC) and 10BaseT (RJ45). The card autosenses which interface is active when it is initialised. The EtherLan600 uses the EtherH driver which is in the card's ROM.

The Installation Instructions, User Guide and Fault Finding Guide are HERE .

I3 produced a utility program to scan the podule slots for EtherLan cards and report on their status. The i3 cardtype program is available HERE .
