The Torch Graduate

[Index by function ]     [Index by Company ]

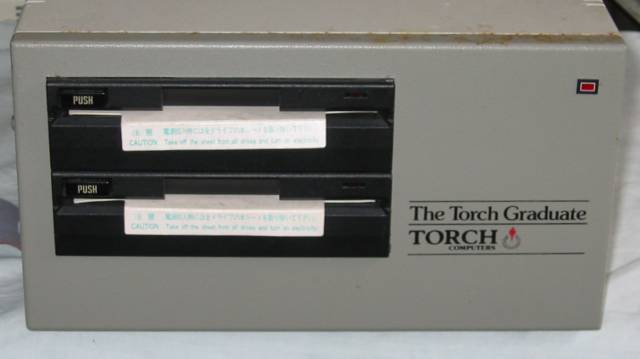

Torch Graduate front

The Torch Graduate (front)

The Torch Graduate is cased in a 10" x 15" x 6" stell case, it has its own pair of 360K floppy disc drives, There is a power LED in the top right.

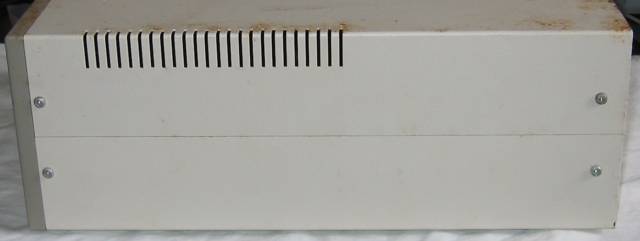

The Torch Graduate right

The Torch Graduate (right side)

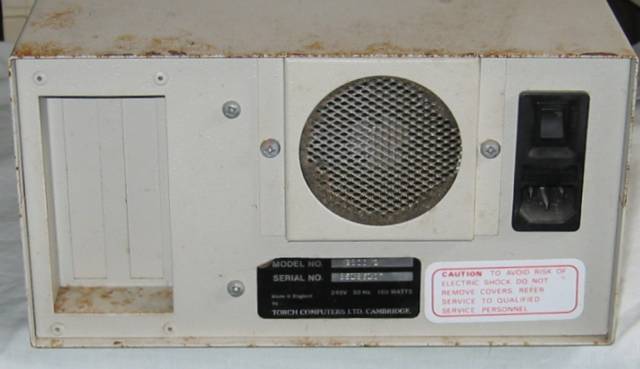

The Torch Graduate back

The Torch Graduate (back)

The Torch Graduate has 2 slots for full sides ISA cards on the left. The fan originally had a foam filter but it has been worn away or perished. The case has a bit of rust on it, this happened before I acquired it.

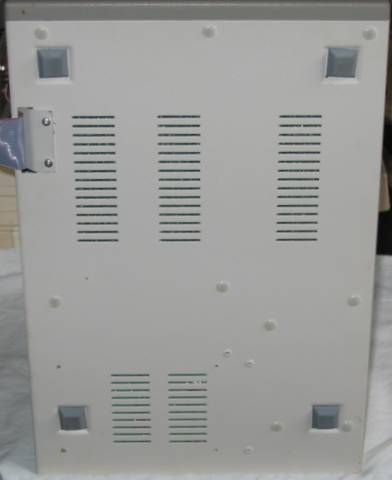

The Torch Graduate bottom

The Torch Graduate (bottom)

The ribbon cable on the left connects to a BBC Micro's 1MHz bus.

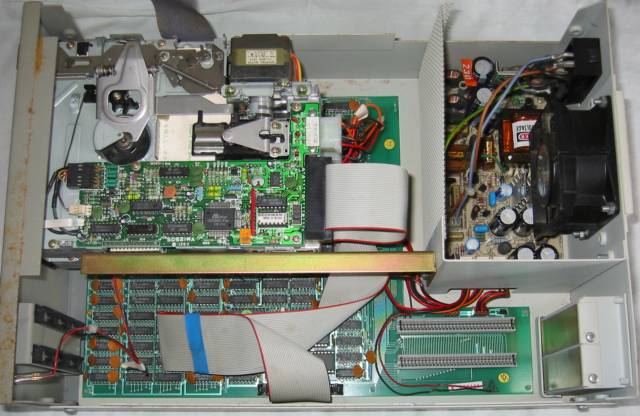

The Torch Graduate open

The Torch Graduate with top cover removed

The Torch Graduate has 2 x Epson SD-521 360K floppy disc drives which are visible in the top left of the picture, this means that the Graduate does not require a disc interface in the BBC Micro. The slots for the 2 ISA expansion cards are in the bottom right.

The Torch Graduate open without discs

The Torch Graduate without the disc drives

This picture shows the Torch Graduate circuit board. The cable at the top connects to the BBC Micro's 1MHz bus.

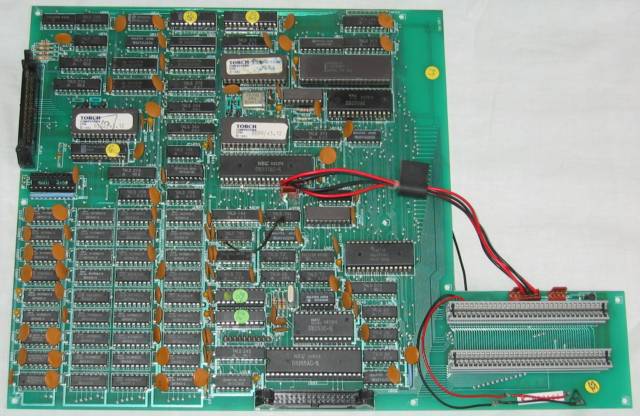

The Torch Graduate circuit board top

The Torch Graduate circuit board (top)

The Torch Graduate circuit board showing clockwise from top right:

Here is a Hi-Res picture of the Torch Graduate circuit board .

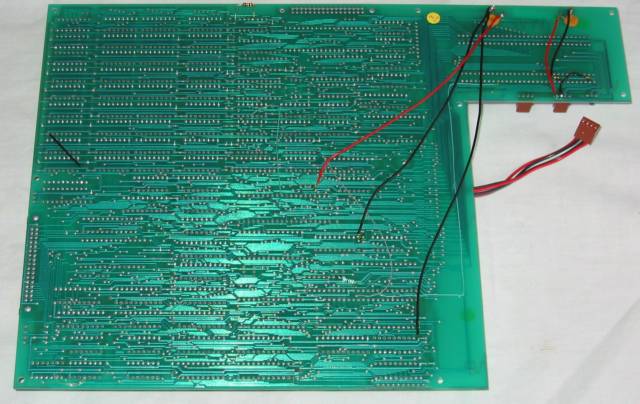

The Torch Graduate circuit board bottom

The Torch Graduate circuit board (bottom)

This show a number of wire patches to the circuit board.


Data Technologies Ltd, a split off, from Torch Computers Ltd, originially developed the Torch Graduate, but had problems completing the product. Torch took over the development and completed the Graduate.

The Torch Graduate is a PC Compatible second processor for the BBC Micro, actually is is really a stand alone computer that uses the BBC Micro's screen, keyboard, serial and parallel ports. The Model Number is G800/2 and the Serial Number is 85186107.

The Torch Graduate has:

The Torch Graduate runs MS-DOS version 2.11. It only requires connection to the BBC Micro's 1MHz port, no ROM is required in the BBC Micro. When the Graduate is booted, 6502 code from the Torch 6502 ROM, is copied 256 bytes at a time into the BBC Micro's 1MHz Bus data page. This allows the BBC micro to boot before the Graduate completes booting MSDOS and installs the Graduate code in the BBC micro.

The Torch Graduate included the Psion Xchange software suite.

The Torch Graduate can be run in BBC mode using the Data Technologies Graduate DFS (GDFS) which is booted from the Graduate's disc instead of MSDOS.

In June 1995 Personal Computer World published a review titled "Torch Graduate ".

Here is a Torch Graduate Brochure.
Here is the Torch Graduate User Guide.
The Torch Graduate also included the Microsoft MS-DOS version 2 User Guide.
