  HCCS MIDI & Sampler micro-podule

[Index by function]  [Index by Company]

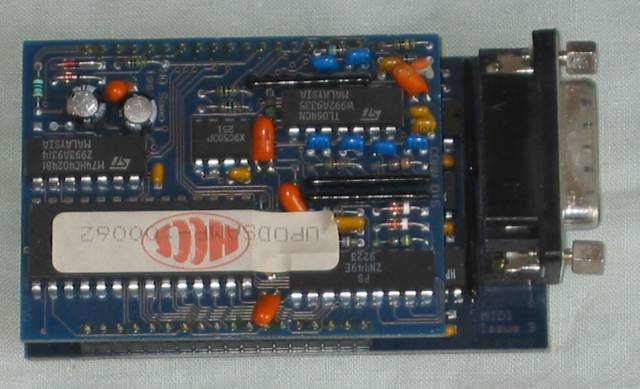

 HCCS MIDI & Sampler micro-podule top

HCCS MIDI & Sampler micro-podule (top)

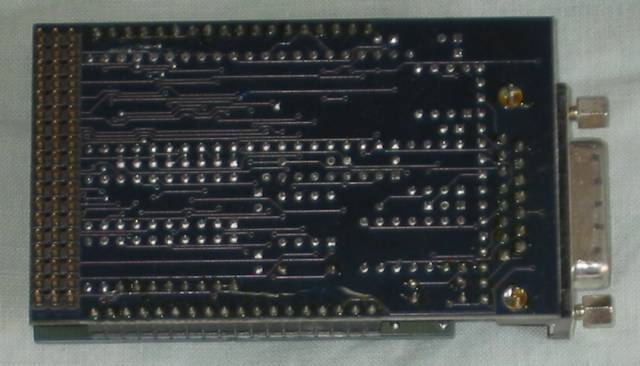

HCCS MIDI & Sampler bottom

 HCCS MIDI & Sampler micro-podule (bottom)

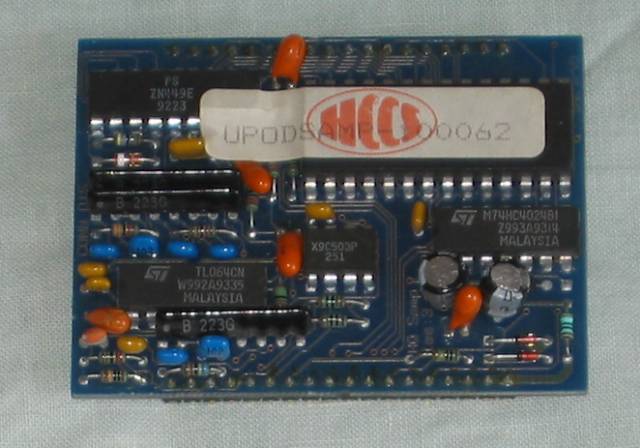

 HCCS Sampler expansion top

HCCS HQ Sampler (top)

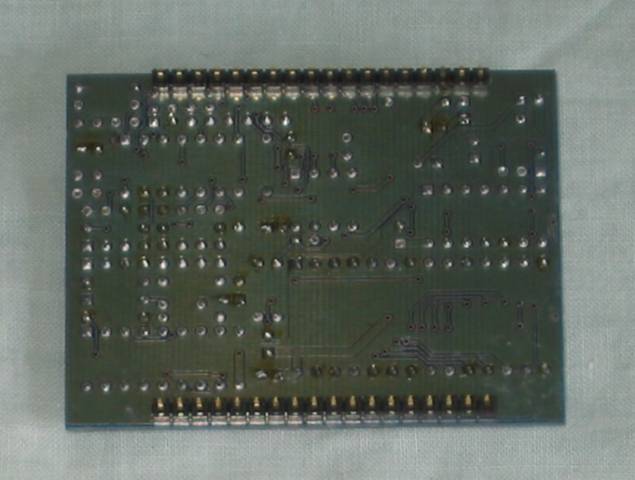

 HCCS Sampler Expansion bottom

 HCCS HQ Sampler (bottom)

 The HCCS MIDI Micro podule is one of a range of micro podules for the Archimedes Multipod card. The Micro podule has a connector at the left hand end which connects to the socket on the Multipod card and the interface at the right hand end fits into a cutout on the Multipod backplane.

 Details of the HCCS "Ultimate" A5000 Multipod system base unit HERE  and the A3020 Ultimate expansion HERE .

 The HCCS MIDI and HQ Sound Sampler User Guide  is in the documentation section.
